Paddle flow switch
47.6 - 67.2 l/min, max. 100 bar | PSR
KOBOLD INSTRUMENTATION

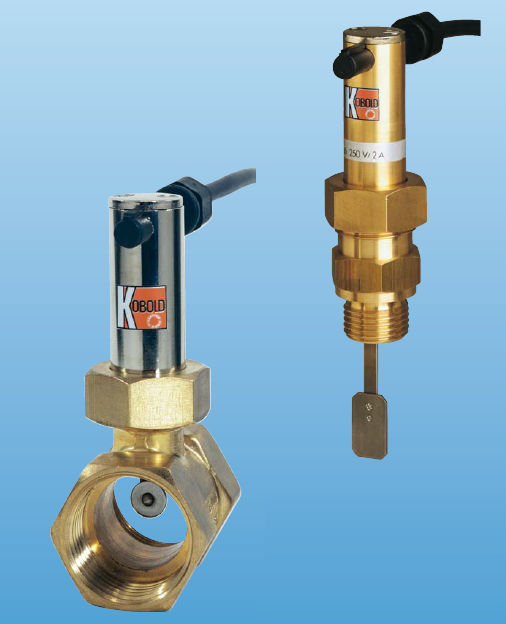

Paddle Flow Monitor for Liquids Model PSR/PSE
Description
The KOBOLD flow monitor types PSE and PSR are simple,
reasonably-priced and reliable monitors of fluid motions.
Depending on the flow velocity/flow throughput the baffle
plate is deflected and it moves over the balance arm the per-
manent magnet into the operating range of the reed contact
mounted outside the process fluid.
Applications
Cooling and lubricant circuits
Dry running protection for pumps
Prevention of low water levels
Monitoring of pipe fracture
