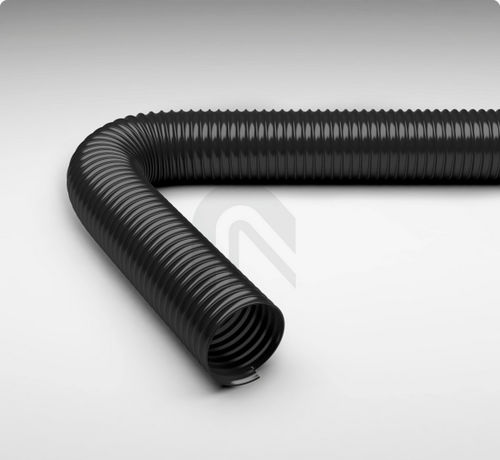

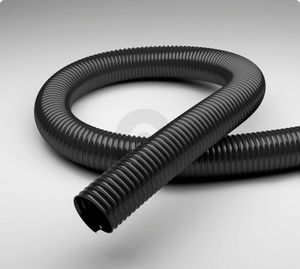

Anti-static hose Master-PUR H EL
for bulk materialsfor gasPU

anti-static hose
anti-static hose
anti-static hose
Add to favorites
Compare this product


Characteristics

Use
for bulk materials, for gas
Material
PU
Applications
suction, transport, for suction units, for industrial vacuum cleaners
Norms
DIN
Other characteristics
lightweight, abrasion-resistant, chemical-resistant, spiral wire, oil-resistant, UV-resistant, anti-static, electrically-conductive, ATEX, halogen-free, for abrasive products, gas-tight
Inner diameter

Min.: 26 mm
(1.024 in)

Max.: 500 mm
(19.685 in)

Outer diameter

Min.: 33 mm
(1.299 in)

Max.: 513 mm
(20.197 in)

Pressure

Min.: 0.3 bar
(4.351 psi)

Max.: 4.16 bar
(60.336 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

5 m, 10 m, 15 m, 20 m, 25 m
(16'04" , 32'09" , 49'02" , 65'07" , 82'00" )

Description

PU Suction & Transport Hose, medium duty, very flexible, electroconductive Type of construction - Profile extruded hose with metal spiral Execution of the wall - made of electrically conductive material, Wall thickness between the spirals approx. 1.4 mm Specifications of the wall - Surface resistance RO < 10³ Ohm Properties Specifications of the product - Complies with DIN 26057 Chemical Properties - halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance Weight - medium heavy Pressure Resistance - pressure resistant Colour - black Other - high vacuum and good pressure resistance, Configurable as a hose system with digital interface for compatibility with the AMPIUS® app - Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Bulk & Construction, Chemistry, Surface Technology, Food & Pharma, Plastics Customizing Options optional item modification (on request) - other nominal widths, other colours, with customer-specific imprint
