paint hose / exhaust / for the pharmaceutical industry / for the chemical industry

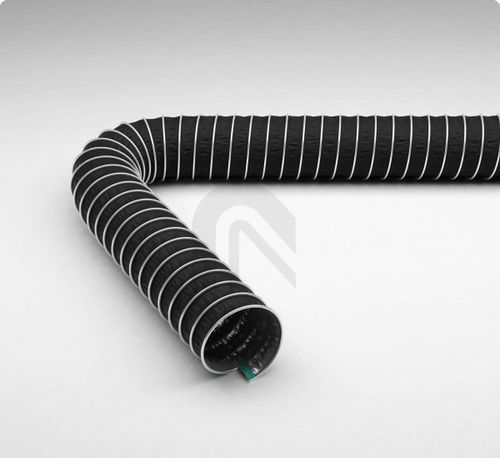

Master-Clip PTFE H-EL

{{requestButtons}}

Characteristics

  • Use:

    for paint

  • Applications:

    exhaust, for the pharmaceutical industry, for the chemical industry

  • Material:

    polyester, PTFE

  • Other characteristics:

    chemical-resistant, lightweight, UV-resistant, weather-resistant, heat-resistant, vibration-resistant, rugged, ATEX, non-adhesive, for corrosive fluids, small bend radius, spiral wire, electrically-conductive

  • Inner diameter:

    Min.: 38 mm (1.496 in)

    Max.: 900 mm (35.433 in)

  • Pressure:

    Min.: 0.016 bar (0.232 psi)

    Max.: 0.94 bar (13.634 psi)

  • Temperature:

    Min.: -40 °C (-40 °F)

    Max.: 175 °C (347 °F)

Description

Material

clip profile spiral: hot-dip galvanised steel band
wall: inner PTFE foil, electroconductive, outer layer: HYPALON®-coated polyester fabric

Applications

Danger zones, which require electrically conductive hoses
Phamaceutical industry
Chemicals industry
Low pressure range
Suction and conveyance of aggressive media, explosive gases and fumes
Paint, wood and paper industry
Solvent extraction

Properties

adheres to TRBS 2153 (Zone 0/20) for flammable dusts and gases with low conductivity for dissipation of electrostatic charges with double-ended grounding
excellent chemical resistance
outer chafing protection spiral
PTFE-Folie: surface resistance RO < 106 Ohm
extremely compressable to approx. 1:4
smallest bending radii
