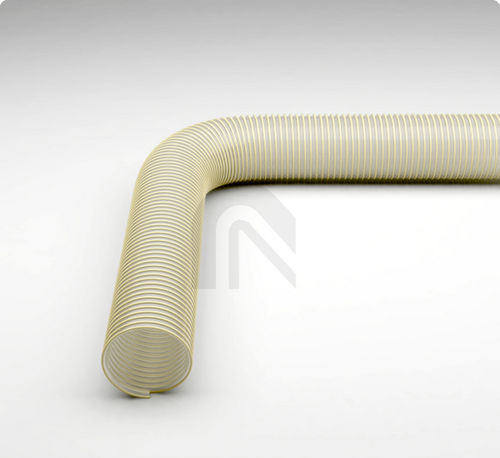

Chemical product hose Master-PUR HX Trivolution

for bulk materialspolyesterPU

Construction / Material Type of construction - Profile extruded hose with metal spiral Material of the spiral - Spring steel Execution of the wall - made of pure material, made of specified material, extra reinforced wear zones, Addition of a non-migrating permanent antistatic agent, Wall thickness between the spirals approx. 2.0 mm Specifications of the wall - Surface resistance RO < 109 Ohm, measured according to DIN EN ISO 8031, Material is more abrasion resistant than comparable polyether polyurethane according to DIN ISO 4649, flame retardant according to DIN 4102 B1 Properties Specifications of the product - Complies with DIN 26057, according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - microbe-resistant, good UV resistance, halogen-free, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free Physical Properties - permanently antistatic Weight - heavy Pressure Resistance - very pressure resistant Other - high vacuum and peak pressure resistance, Configurable as a hose system with digital interface for compatibility with the AMPIUS® app - Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Agriculture, Automotive, Plant & Mechanical Engineering, Industry, Semiconductor Industry, Bulk & Construction, Sea & rail transport, Wood, Chemistry, Food & Pharma, Waste disposal & cleaning technology, Plastics, Conveying, lifting & feeding technology, Textile, Printing & Paper, Vehicle construction, Metal & Toolmaking
