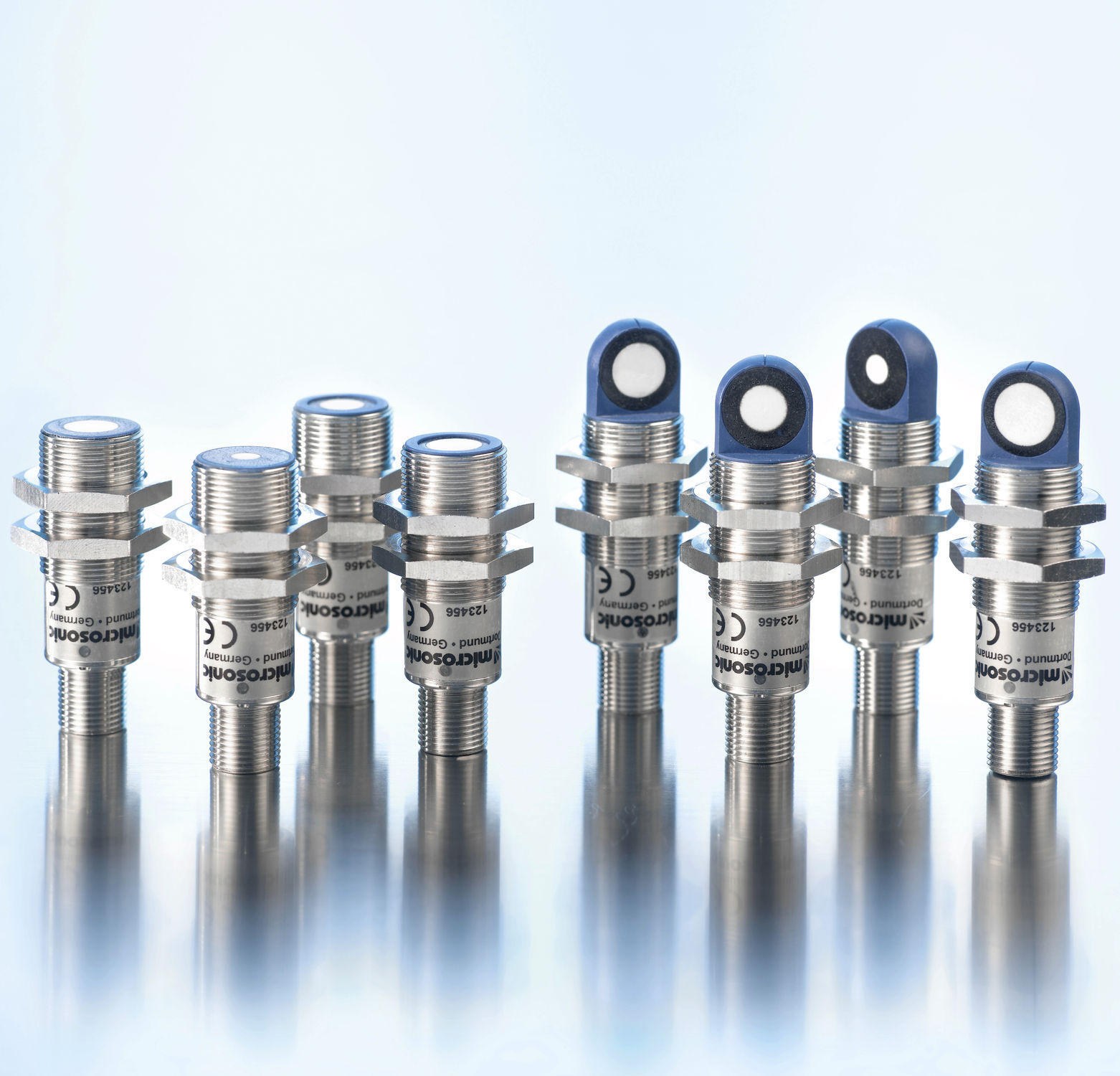

Ultrasonic distance sensor
ø = 18 mm, analog | pico+
microsonic
Highlights
Variant with 90° angled head ::: for individual installation situations
IO-Link interface ::: for support of the new industry standard
Automatic synchronisation and multiplex operation ::: for simultaneous operation of up to ten sensors in close quarters
Basics
1 Push-Pull switching output, pnp or npn basis ::: for all controllers
Analogue output 420 mA or 010 V ::: for analogue distance measurements
4 Detection ranges with a measurement range of 20 mm to 1.3 m ::: individually appropriate for the use case
microsonic teach-in on Pin 5 ::: for simple, uniform commissioning
0.069 - 0.10 mm resolution ::: for the highest precision possible
Temperature compensation ::: for exact measurement in temperature fluctuations
1030 V operating voltage ::: for use on a variety of voltage networks
LinkControl ::: for configuration of sensors from the PC
