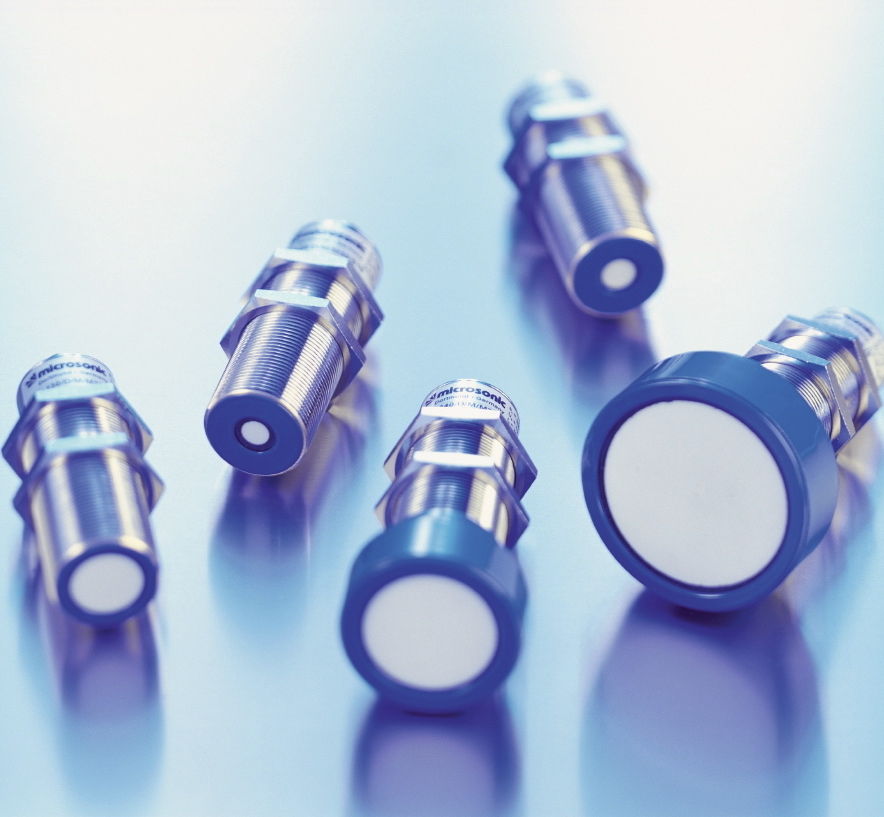

Ultrasonic level sensor
ø = 30 mm | mic
microsonic
Highlights
M30 housing and M12 circular connector in metal design ::: for harsh usage conditions
Automatic synchronisation ::: for simultaneous operation of up to ten sensors in close quarters
Basics
1 switching output in pnp variant ::: with a load up to 200 mA
Analogue output 420 mA and 010 V ::: with automatic switching between current and voltage outputs
5 Detection ranges with a measurement range of 30 mm to 8 m ::: individually appropriate for the use case
microsonic teach-in on Pin 5 ::: for simple, uniform commissioning
0.18 mm resolution ::: for the highest precision possible
Temperature compensation ::: for exact measurement in temperature fluctuations
930 V operating voltage ::: for use on a variety of voltage networks
LinkControl ::: for configuration of sensors from the PC
