Diaphragm air pump
max. 7.5 l/min, 1.5 bar | DP 0110
Nitto Kohki Deutschland
Attainable Vacuum -666 mbar
Free Air Displacement 7.5 l/min
Maximum Pressure 1.5 bar
Maximum Current 1.2 A
0.6 A
Rated Voltage 12 V
24 V
Rated Operating Time Continuous
Life Expectancy 5.000 h
Inlet &Outlet 6mm O.D.
Coil Insulation Class A or its equivalent (JETL)

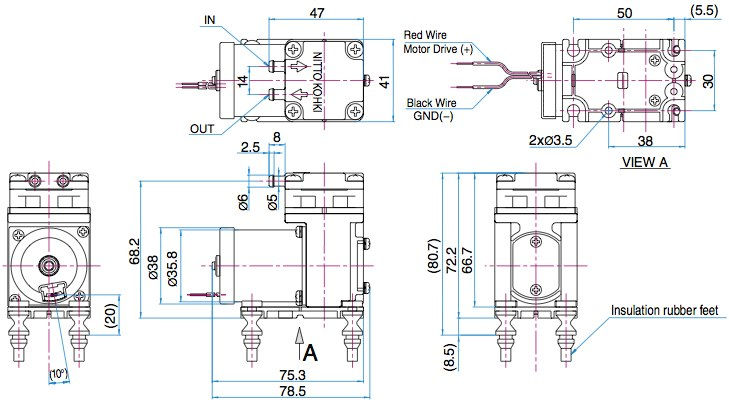

Mounting Dimensions (L x W) 30 x 50 mm
Gross Weight 0.3 kg
Leadwire Length 360 +/- 20 mm
Free Air Displacement 7.5 l/min
Maximum Pressure 1.5 bar
Maximum Current 1.2 A
0.6 A
Rated Voltage 12 V
24 V
Rated Operating Time Continuous
Life Expectancy 5.000 h
Inlet &Outlet 6mm O.D.
Coil Insulation Class A or its equivalent (JETL)
Mounting Dimensions (L x W) 30 x 50 mm
Gross Weight 0.3 kg
Leadwire Length 360 +/- 20 mm
