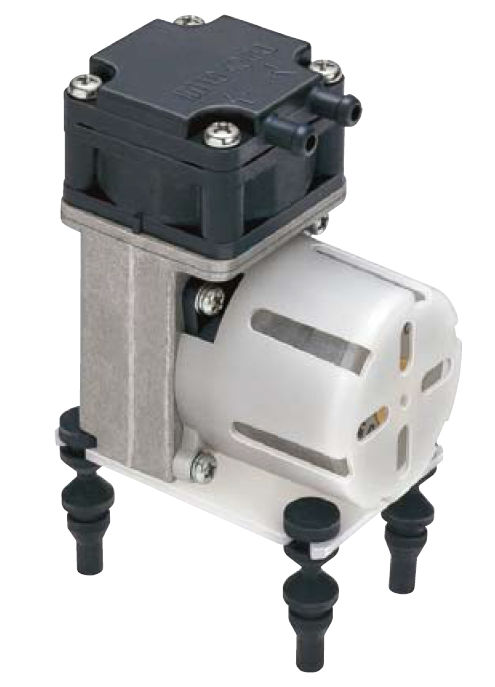

Diaphragm vacuum pump
max. 5 l/min, 0.45 bar | DP 0102
Nitto Kohki Deutschland
Attainable Vacuum -267 mbar
Free Air Displacement 5 l/min
Maximum Pressure 0.45 bar
Maximum Current 0.7 A
Rated Voltage 12 V
Duty Cycle Continuous
Live Expectancy 5.000 h
Inlet & Outlet 6mm O.D. straight nipple
Coil Insulation Class E or its equivalent (JETL)

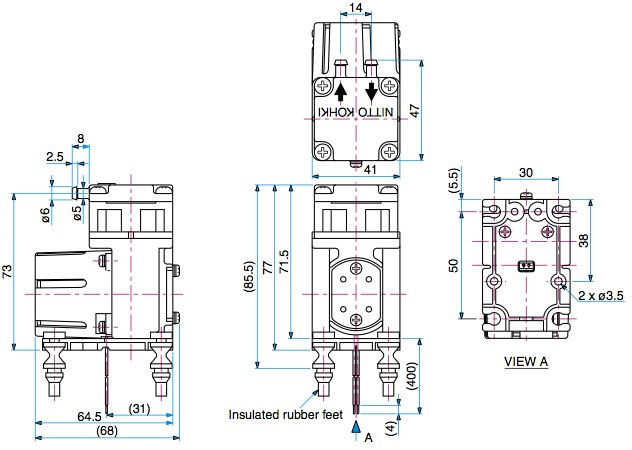

Mounting Dimensions (L x W) 50 x 30 mm
Gross Weight 0.25 kg
Leadwire Length 400 mm
