Diaphragm vacuum pump / oil-free / single-stage / industrial
Nitto Kohki Europe
Number of stages:
2.5 l/min (0.66 us gal/min)
-333 mbar (-4.83 psi)

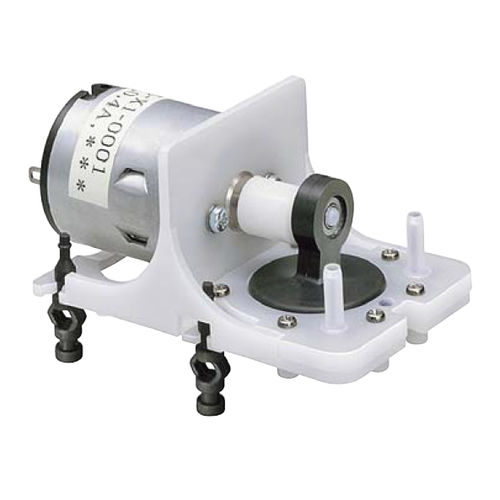

The diaphragm air pump DP0125 is a vacuum pump to balance the airflow and electric current. The attainable vacuum pressure is -333 mbar with free air displacement 2.5 l/min, maximum pressure 0.3 bar and maximum current 0.5 A.
The rated voltage of the pump is 12 V with continuous duty cycle and expected life of 200 hours. The inlet and outlet is 3mm O.D. with straight nipple. The coil insulation class E is equivalent to JETL and the mounting dimensions are 32 x 32.5 mm with 0.05 kg gross weight.
