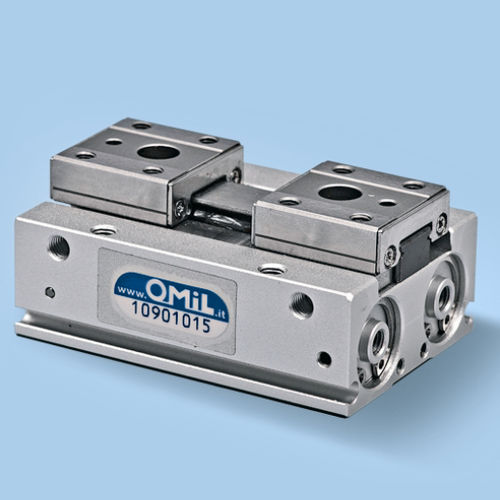

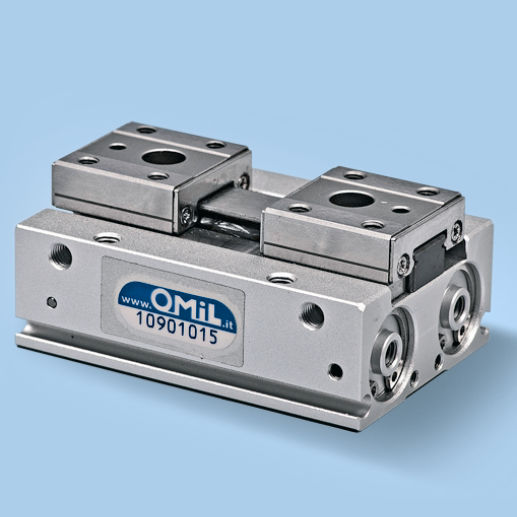

Long stroke pneumatic parallel gripper
95 - 270 N, 12 - 80 mm | GHL series
OMIL
- Range of operating pressure : 2 - 7 bar
- Repeatability accuracy: 0.1 mm at 100
cycles
- Operating temperature: from -10°C to
90°C
- Operating principle: fingers sliding,
guided by rack and pinion for concentric
gripping
- Housing material: high tensile hardcoated aluminium alloy
- Material of functional parts: treated
ground steel
- Actuation : compressed air filtered (10
µm), dry or lubricated
- Maintenance: no maintenance required
for the first 1.5 million cycles
- Suitable for internal/external gripping
- Rating IP 20
- Warranty 24 months
- Repeatability accuracy: 0.1 mm at 100
cycles
- Operating temperature: from -10°C to
90°C
- Operating principle: fingers sliding,
guided by rack and pinion for concentric
gripping
- Housing material: high tensile hardcoated aluminium alloy
- Material of functional parts: treated
ground steel
- Actuation : compressed air filtered (10
µm), dry or lubricated
- Maintenance: no maintenance required
for the first 1.5 million cycles
- Suitable for internal/external gripping
- Rating IP 20
- Warranty 24 months
