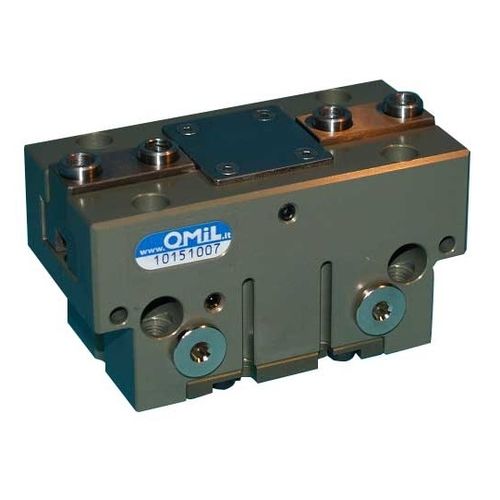

Pneumatic gripper / parallel / 2-jaw / for heavy loads
OPP series OMIL

Characteristics

  • Operation:

    pneumatic

  • Type:

    parallel

  • Number of jaws:

    2-jaw

  • Application:

    for heavy loads, for handling systems, for industrial robots, for sheet metal, for fabric, for laboratory automation, for wooden sheets, for palletization robots, palletizing, for glass sheets, for large parts, for small loads, for the pharmaceutical industry, for reel handling, for collaborative robots, for large workpieces, for lightweight robots, for the cosmetics industry

  • Options:

    precision, compact, self-centering, long-stroke, double-acting, high clamping force, maintenance-free, with integrated force sensor, internal, high-efficiency, external, ATEX, magnetic

  • Stroke :

    Min.: 4 mm

    Max.: 32 mm

  • Grip strength:

    Min.: 110 N

    Max.: 3200 N

Description

- operating pressure: 2...8 bar
- repeatability accuracuy: from 0.01-0.02 absolute
- operating temperature: from -10°C to 90°C, 130°C upon request
- operating principle: wedge - hook kinematics
- stroke range: from 4 to 32 mm
- housing materilas: high tensile hard-coated aluminium alloy, hard-anodized
- material of functional parts: treated ground steel
- actution: filtered compressed air
- pressurization
- Rating IP 40
