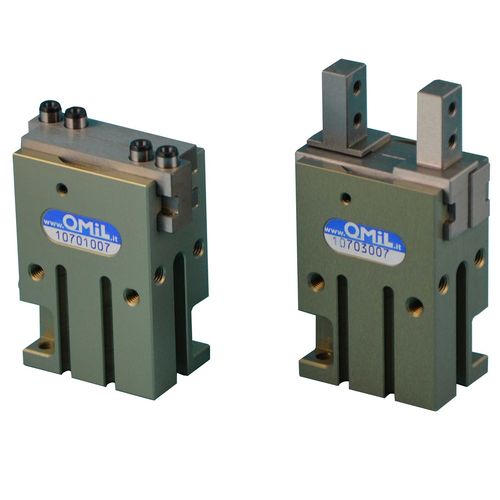

Pneumatic micro gripper / parallel / 2-jaw / for collaborative robots
PEP series OMIL

Characteristics

  • Operation:

    pneumatic

  • Type:

    parallel

  • Number of jaws:

    2-jaw

  • Application:

    for collaborative robots, for laboratories, for laboratory automation, for the pharmaceutical industry, for clean rooms, for fabric, for handling systems, for industrial robots, for large workpieces, for palletization robots, for sheet metal, for the cosmetics industry

  • Options:

    lightweight, compact, long-stroke, precision, double-acting, external, high-efficiency, permanent magnetic, high-speed, internal, maintenance-free

  • Stroke :

    Min.: 4 mm

    Max.: 63 mm

  • Grip strength:

    Min.: 16 N

    Max.: 1440 N

Description

- operating pressure: 3...8 bar
- repeatability accuracuy: from 0.02-0.03 absolute
- operating temperature: from -10°C to 90°C, 130°C upon request
- operating principle: wedge - hook kinematics
- stroke range: from 4 to 63 mm
- housing materilas: high tensile hard-coated aluminium alloy, hard-anodized
- material of functional parts: treated ground steel
- actution: filtered compressed air
- pressurization
- Rating IP 40
