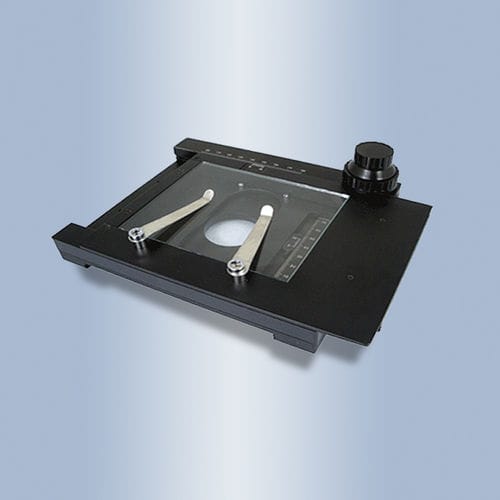

XY positioning stage 045-100130-01manual2-axiscompact
Add to favorites
Compare this product
Characteristics
- Orientation
- XY
- Type
- manual
- Number of axes
- 2-axis
- Other characteristics
- compact, micrometer-driven, precision, aluminum
Description
Manual measuring table travel range 75 x 55mm for incident and transmitted light
This measuring table from Opto offers high quality at a reasonable price
Alternatively Opto offers further measuring stages for incident and transmitted light applications in the sizes 25mm x 25mm and 50mm x 50mm.
Opto's measuring tables are compact and extremely flexible. Their accuracy depends on the micrometer screws used and can be up to 0.001 mm (1 µm). This model offers Opto at an affordable price.
All stages are coated in black and have four M5 threaded screws on the underside for mounting on tripod plates.
Technical Specification:
Load 5kg
Travel range 75 x 55mm
Travel per knob x-25mm y-40mm
Scale 1mm
Dimensions 180 x 155 x 27mm
weight 1,54kg
