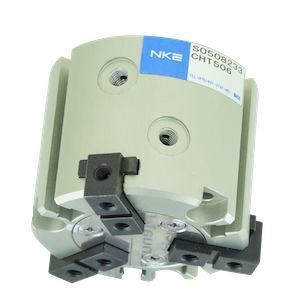

Pneumatic gripper CHT503

parallel3-jawfor heavy loads

This 3-jaws gripper receives a compact design while offering long strokes. Moreover, CHT500 Series offers various mounting possibility thanks to their 2 air connection (side, top), their jaws that can receive attachments on all side and their 4 sensors mounting positions. These grippers are adapted for use in clean rooms. Advantages Compact-Lightweight-Fast Silent mechanism Quick and simple integration Large opening angle Position sensors Benefits No maintenance Very short cycle time Excellent power/volume ratio Low air consumption Courses - 5 mm Air consumption - 620 mm³ Function - Double effet Max cycle per minute - 90 cycles Gripping force* - 71.0 N Weight - 0.06 kg Max. length of attachment from finger end - 20 mm Max. weight of one attachment - 0.03 kg Type - Parallel 3 jaws Working media - Filtered air Operating pressure - 3 to 7 bar Working temperature - 5 to 60°C Lubrication - Normally not required (but if necessary, use ISOVG32 compliant lubricant) Repeatability - Initial value : ± 0.1 mm, after 2 million cycles : ± 0.2 mm Lifetime - 2 million cycles (with balanced load on each finger)
