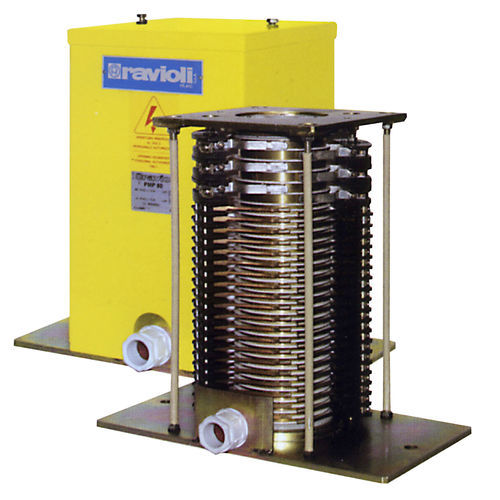

Column type slip ring PMPmetalgraphite
Add to favorites
Compare this product
Characteristics
- Construction
- column type
- Material
- metal, graphite
- Voltage
660 V
- Primary current
Max.: 50 A
Min.: 20 A
- Rotational speed
30 rpm
(188 rad.min-1)- Number of channels
Max.: 42 unit
Min.: 18 unit
Description
Ravioli Slip Ring Type PMP is completely manufactured in metal which assures a high mechanical resistance and a good protection degree.
Copper-graphite or silver-graphite brushes for signals are available, executions range from 18 to 42 rings 20 A and 50 A. Protection degree IP42, optional angular sensors are available upon request.
The key features of Ravioli Slip Ring Type PMP are the reduced height of the device – thanks to the limited distance among the rings of only 5mm – and the capability of supporting a high numbers of passages.
Rings available
Up to 42
Mixed versions
with 20 A and 50 A rings
