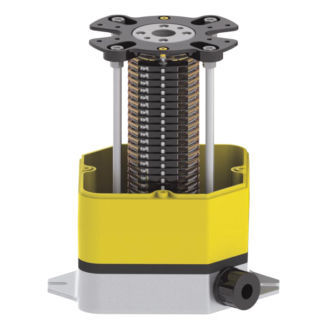

Column type slip ring PME thermoplasticaluminumIP65

column type slip ring
column type slip ring
Add to favorites
Compare this product
indicative price

Characteristics

Construction
column type
Material
thermoplastic, aluminum
Other characteristics
IP65, modular, for harsh environments
Rotational speed

30 rpm (188 rad.min-1)

Current

Min.: 20 A

Max.: 100 A

Voltage

660 V

Number of channels

Min.: 20 unit

Max.: 60 unit

Description

Designed and manufactured to be applied in extremely heavy conditions, Ravioli Slip Ring Type PME Evolution is provided with aluminium bottom and cover, whilst the central core of the device is realised with a special insulating thermoplastic material which combines a high modular versatility together with limited hight of the device, maintaining intact both the elevated mechanical resistance and the high protection degree. Copper-graphite, silver-graphite or touch system contact brushes for signals are available, executions range from 6 to 60 rings 20/50/100 A. Protection degree IP65, optional angular sensors are available upon request. Ravioli Slip Rings Type PME Evolution are a perfect mix of heigh resistance to mechanical stress, multiplicity of single and combined versions, reduced hight and dimensions, high voltages. A large number of optional accessories, encoders, sensors and air passages are available upon request.
