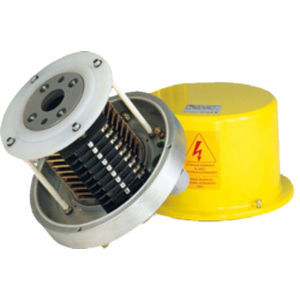

Column type slip ring PMScopperalloygraphite
Add to favorites
Compare this product
Characteristics
- Construction
- column type
- Material
- aluminium, silver, copper, alloy, graphite
- Other characteristics
- waterproof, IP55
- Voltage
660 V
- Primary current
Min.: 20 A
Max.: 50 A
- Rotational speed
30 rpm
(188 rad.min-1)- Number of channels
Min.: 6 unit
Max.: 30 unit
Description
Ravioli Slip Ring Type PMS is designed with alloy bottom and aluminium cover which guarantee a strong mechanical resistance and a high protection degree.
Copper-graphite or silver-graphite brushes for signals are available, executions range from 6 to 30 rings 20 A and 50 A, protection degree IP55. One or more fluidic passages or angular sensors are available upon request.
Ravioli Slip Ring Type PMS is extremely useful especially for outdoor applications where small dimensions and reduced hight of the device are required, thanks to the limited distance among the rings of only 5mm.
Mixed versions
with 20 A and 50 A rings
Reduced height
of the device
Protection degree IP55
