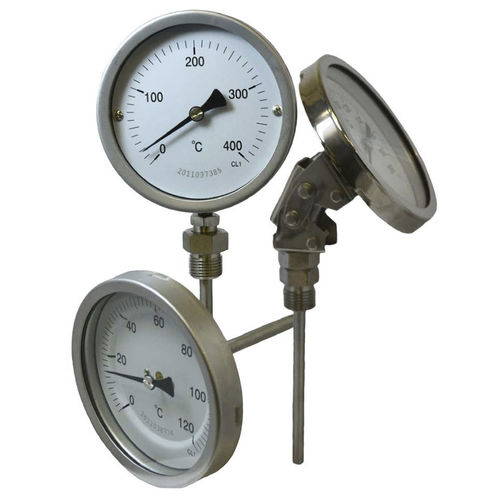

bimetallic thermometer / dial / insertion / stainless steel
RIC100 Riels Instruments

{{requestButtons}}

Characteristics

  • Technology:

    bimetallic

  • Display:

    dial

  • Configuration:

    insertion

  • Other characteristics:

    stainless steel, IP65, adjustable dial

  • Applications:

    industrial, for food, for harsh environments, for hot water, food, for the petrochemical industry

  • Temperature:

    Min.: -50 °C (-58 °F)

    Max.: 600 °C (1,112 °F)

Description

Scale range from -50°C up to 600°C
Dial nominal size (mm): 80, 100, 150 mm
Case and ring: AISI 304 st. st., AISI 316 to Ø 100 and 150, with bayonet clutch
Accuracy: Class 1 according to EN 13190 in the range of measure
Degree of protection: IP 55, according to EN 60529

The industrial bimetal thermometers series RIC100 are thermometers with cylindrical spring as sensing element.
They are suitable for petrochemical, food and pharmaceutical plants and everywhere is required the use of stainless steel and they have the design features in according to technical specifcations of UNI and others international rules.

The bimetal thermometer series RIC100 areavailable in 80/100/150 mm dial sizes and back, bottom or every angle versions.

They are formed by a stailess steel tube inwhich there is a bimetal helical spiral that gets deformed under temperaturevariations.

Mounting

RIC100-R - Direct, bottom stem.
RIC100-P - Direct back stem.
RIC100-O - Direct, adjustable angle stem.
