butterfly valve / lever / for liquid food products and beverages / lug type
T-KV.L1140 series SMS - TORK

{{requestButtons}}

Characteristics

  • Type:

    butterfly

  • Operation:

    lever

  • Media:

    for liquid food products and beverages

  • Body:

    lug type

  • Temperature:

    Max.: 130 °C (266 °F)

    Min.: -30 °C (-22 °F)

  • Pressure:

    10 bar (145 psi)

Description

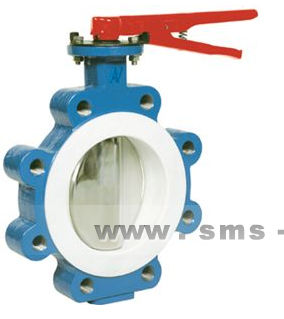

Developed by Tork®, the T-KV .L1140 LUG screwed hole butterfly valve is designed for use in heavy duty industrial operations.

Constructed with epoxy coated GG 25 casting iron, the valve is equipped with EPDM standard seals and an AISI 420 stem. The valve is capable of operation with pressures up to 10 bar (145 psi), and ambient temperatures ranging -30° C to 130° C (-22° F to 266° F)/

Models in the series have been used with a wide variety of materials for several types of industries, such as civil engineering, fire extinguishing, power generation, purification systems, pulp and paper processing, food and beverage industry, and chemical and petrochemical development. Different disc or seal types are available for selection.
