Overrunning clutch
max. 15 750 Nm | RIZ series
STIEBER

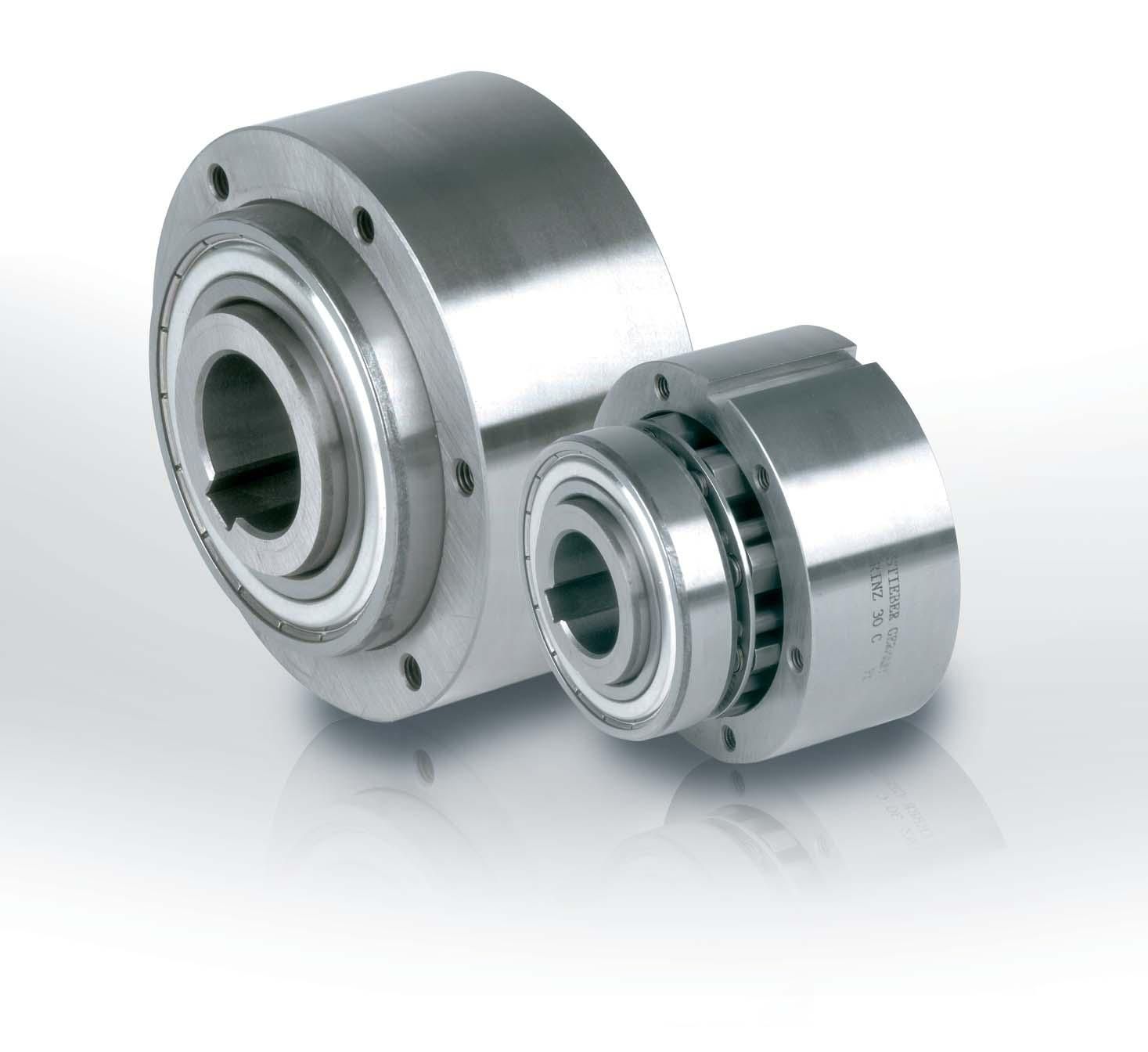

Type RIZ is a centrifugal lift off sprag type freewheel with the inner race rotating. Suitable for backstop, or overrunning clutch applications. Only the inner race is designed for freewheeling.
This unit is part of the Stieber modular system. It is bearing supported using series 60.. bearings, grease lubricated and fitted with ZZ seals.
This unit is delivered as standard lubricated with grease and ready to install in either a horizontal or vertical position.
Types RIZ are designed to be used with G series covers (see following pages) but if the unit is to be installed inside a housing where oil lubrication is available, please specify type RIW. The F series covers from type GFR are then used without shaft seals.
This unit is part of the Stieber modular system. It is bearing supported using series 60.. bearings, grease lubricated and fitted with ZZ seals.
This unit is delivered as standard lubricated with grease and ready to install in either a horizontal or vertical position.
Types RIZ are designed to be used with G series covers (see following pages) but if the unit is to be installed inside a housing where oil lubrication is available, please specify type RIW. The F series covers from type GFR are then used without shaft seals.
