Other positioning stages

Stroke : 13 mm

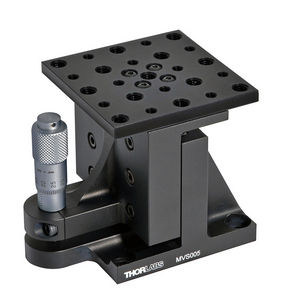

Features Fine Positioning via Micrometer Adjusters Array of 1/4"-20 (M6) and 8-32 (M4) Mounting Holes 13 mm (0.5") Deck Height Adjustment Grooved Top Plate Available (Compatible with Our Range of Flexure Stage Accessories) Black Anodized ...

Stroke : 5, 10 mm

Unimec linear and cross slides are valuable and often indispensable accessories for achieving flexible automation. They are used to secure precise positioning of different elements. Although they have been specifically designed for ...

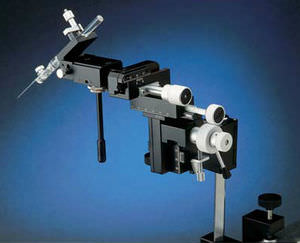

With this very sensitive mechanical joystick micromanipulator, motion, even in the micron range, is possible. This micromanipulator is so stable and strong that it can accommodate even piezo-steppers. Joystick micromanipulators provide ...

Stroke : 28 mm - 5,694 mm
Speed: 9 m/s
Repeatability: 5 µm

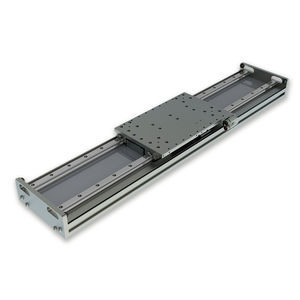

MLS5 linear motor stage: electromechanical actuator for automation MLS5 is a fully open base model. It is the most economical option available, offering a very good carriage power to dead weight ratio, which results in better acceleration. ...

Welding motorized stages are constructed in a maximum dimension of 80 x 130 mm. These are most commonly known as XY tables and are fabricated in aluminum materials. They are constructed in a swan neck design and are specially built for ...

【Product Description】 The 3-DOF motion simulation platform system consists of a 3-DOF motion platform, computer control system, and drive system. The platform includes a fixed base, a movable upper platform, three Electric Cylinders ...

Payload: 500, 1,000 kg

Model HAP1-500 HAP1-1000 Structure Turn Table Degree of Freedom 1 Payload 500 kg 1000 kg Drive Method AC Servo Range of Motion Rotation 1 ±365° Rotation 2 - Maximum Speed Rotation 1 120°/s 75°/s ...

Load: 100 g

Ultra-precise resolution enables operation in extreme environmental conditions. A rotational motor providing positioning of theta and phi. *Customization available

Repeatability: 50 µm
Load: 35 kg
Stroke: 50 mm - 250 mm

ACROME Stewart Pro Platform is a precision hexapod positioner system, used for industrial parallel robotics applications and research projects. This model is evolved on the success of ACROME's smaller Stewart Platform Academic version. ...

Belt drive Sizes: 60, 60S Mechanical linear unit with external roller guides. Due to the rectangular profile higher torques and loads can be taken up. In addition, a very high stability and low deflection are ensured for long axis systems. Repeating ...

Screw Driven Slides with Hand Cranks & Locks Available with Minuteman Self Lubricating Sleeve Bearings or Linear Ball Bearings Materials: Aluminum alloy: Top and Bottom Plates, rail supports, bearing pillow blocks and coupling. ...

Repeatability: 0.02 mm
Load: 3 kg - 120 kg

LINEAR MOTOR POSITIONING STAGE 1. High Suitable 2. Long Stroke 3. High Precision DESCRIPTION The linear motor stage can be used in variety of applications, such as assembly, grade transportation, dispensing, etc. Thanks ...

The LDS-1000 Laser Doppler Scale (LDS) provides high speed, high accuracy and long range positioning for single or multiple axis applications, such as linear motors, large gantry machines, CNC machine tools, CMM's, precision stages, Supermicrometers, ...

Y-Z Positioner for Lens, Pinholes and Objectives 5ZYP are compact mounts designed to precisely position optical components in the plane orthogonal to the optical axis. Ideal for microscope objectives, mounted pinholes, fiber optics chucks, ...

Repeatability: 1.5, 5.5 µm
Stroke: 76 mm
Speed: 50 mm/s

Yield maximization in the smallest possible construction space This high-precision positioning system has been specifically designed as a complementary polarization filter for miniaturization and automation in EUV lithography. It maximizes ...

This is the X-Y combination of KSS MoBo Actuators as customized products. Photo left is an example of using Slider type of MoBo Actuators.

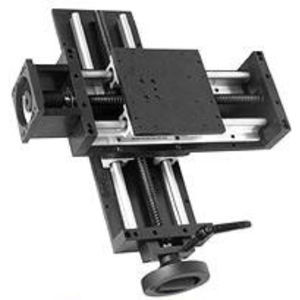

From low cost to high end cross tables LANG offers a huge spectrum of cross tables for different application areas in different price categories. LANG offers different drive systems. As drive systems smoothed or rolled ball screw drives, ...

Payload: 2,000 kg - 6,000 kg

∙ Rapid orientation of workpiece ∙ Optimum ergonomic positioning offers maximum productivity ∙ One set-up for lifting and rotating ∙ Reduced down time ∙ Highest work performance by comfortable working ∙ Back-friendly working for ...

Stroke : 50 mm - 1,520 mm
Speed: 0 m/s - 1.27 m/s

The Lintech 100 series linear actuators are designed to maximize performance while minimizing physical size and cost. These linear slides use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ...

Stroke : 10 mm - 950 mm

Frictionless slides RT The RT Slides series provide smooth, virtually frictionless linear motion. They are a perfect choice for high precision applications offering high load capacity and system stiffness. The slides are factory preloaded ...

3 DOF (Degree of Freedom) Motion Simulation Platform Based on our electric cylinder, we design and manufacture the 3 DOF (3 Degree of Freedom) motion base platforms. The three-degree-of-freedom motion platform consists of three ...

Payload: 250 kg - 2,000 kg

Single horizontal axis positioner for light and medium payloads. Cost efficient solution for simpler applications. Available with or without tailstock.

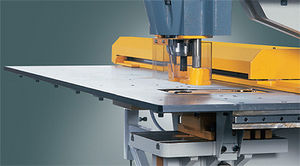

No marking out before punching required. Distance between holes is always correct, even when plates are not square or the batch of plates vary in size. When plates fitted on site they always fit. Due to 'user friendly' control it ...

The 4 post road simulator is designed for the full vehicle road simulation, durability & NVH testing by using low noise hydrostatic bearing actuators.

Stroke : 24 mm - 75 mm

Short motor positioning tables coaxial drive Our motor positionig Tables are cheap and sturdy solutions for adjusting and positioning tasks of machines and devices. The high precise and durable guiding lines are vibration-reducing ...
