DC reed relays

Switching current: 16, 10 A
Output voltage: 5 V - 240 V

max. 16 A switching & permanent current Drive available as monostable DC or AC Load disconnecting relay with 3 mm contact gap Ambient temperature -25 to +55 °C cULus approval (version with 2 NOC) Solder ...

Switching current: 0.3, 0.5 A

Miniature reed relay in a single-in-line (SIL) package with a choice of normally open, normally open high-voltage or changeover contacts capable of switching up to 300Vdc at 10W and 140Vac at 10VA. Available ...

Switching current: 0.5 A - 2 A

... is also a high resistance coil up to 11 kOhm that can be bought. General purpose line sensing dual in-line DIL Series Reed Relay with coil up to 11.000 Ω. Supplied in an epoxy encapsulated package. ...

Switching current: 0.5 A

... ultraminiature 7GHz (RF) high frequency reed relay design in a low-profile surface mount (SMD) package. The RF reed relay features a high insulation resistance (IR) ...

Switching current: 3 A

A range of six high voltage reed relays with 3 operating coil voltages (6, 12 and 24Vdc)

Switching current: 1 A

The S8-HR series is a UL* approved miniature high voltage reed relay for applications where space saving is a prime consideration. The coil pins are positioned near the centre of the relay ...

Switching current: 0.5 A

... combined with 3 or 5kV isolation and low contact resistance making the S(UL) series suitable for high voltage applications at DC and low frequency.

1. Suitable for power supply (90 to 110% ) in compliance with IEC standard of rolling stock 2. Suitable for operating temperature range (-40 to +70C) in compliance with IEC standard of rolling stock 3. Shock and vibration : IEC 61373 ...

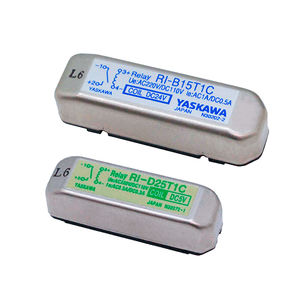

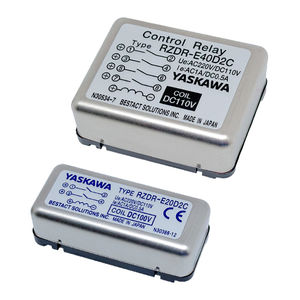

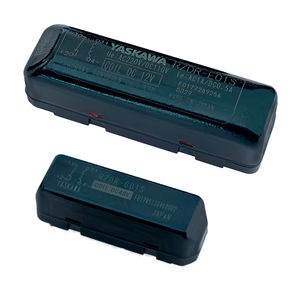

1. Widely used to various control loads for railway rolling stocks andd railroad signals 2. Extremely high performance for DC magnetic valves and solenoid loads 3. High contact reliability, suitable for severe environment 4. ...

... by combinations of the contact arrangement in order to offer best suitable relays 6. It is possible to use the relays as 6 poles (6NO, 5NO1NC........6NC), when connect two relays when ...

Switching current: 2 A

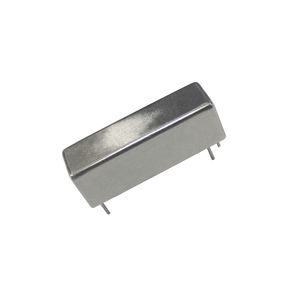

Single Side Stable Mercury (Hg) Relay Contact Form: 1 Form C Switching Voltage: 500 Vac/dc Max. FEATURES • Bounce-free operation • Stable, low contact resistance over life • Magnetically shielded ...

Switching current: 2 A

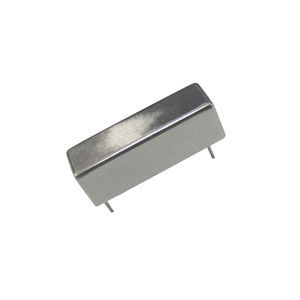

Single Side Stable Mercury (Hg) Relay Switching Voltage: 500 Vac/dc Max. FEATURES • Bounce-free operation • Stable, low contact resistance over life • Magnetically shielded • Multi pole FORM-C ...

Single Side Stable Mercury (Hg) Relay Contact Form: 1 Form C Switching Voltage: 500 Vac/dc Max. FEATURES • Bounce-free operation • Stable, low contact resistance over life • Magnetically shielded ...
