Round-thread lead screws
Diameter: 10 mm - 60 mm
The trapezoidal thread spindles are rolled. The spindle nuts are available with a hexagon insert bit or round.
Diameter: 0.125 in - 0.187 in
Description 0.125 inch diameter anti-backlash lead screw nut

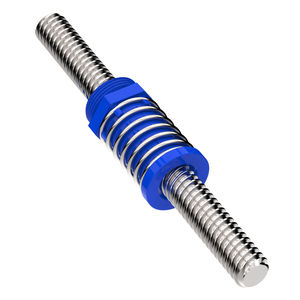

Diameter: 0.25 in
Description Inch Threaded Axial ANTI-Backlash Nut, Threaded, 1/4", RH, Axial ANTI-Backlash, 1/4", 0.0240" Lead, RH, 1 Start

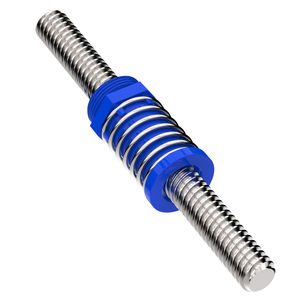

Diameter: 0.25, 0.375 in
Description Inch Threaded Axial ANTI-Backlash Nut, Threaded, 5/16", LH, Axial ANTI-Backlash, 5/16", 0.1000" Lead, LH, 1 Start
Diameter: 10 mm - 300 mm
... and multi-start round thread lead screws and knuckle threads according to DIN 405, DIN 15403 and DIN 20400 standards (using metric and imperial measurement ...
Diameter: 12 mm - 50 mm
... advantages compared to alternative solutions like an acme screws, where the screw thread surface slides directly on the nut thread surface, so the sliding friction occurs ...
Eichenberger Gewinde's Rondo Round Thread Lead Screws are alternative tools to trapezoidal screws. These components are made out of stainless steel X20Cr13 ...
Load rating: 22.55 N - 89.24 N
Diameter: 3.3 mm - 9.53 mm
The LNTG Miniature leadscrew nuts from Reliance are especially designed for low force and high accuracy operations, where space is at a premium. These are appropriate for dynamic loads of up to 22.55N or 2.3kg. The units are built ...
Lead Screws & Threaded Nuts - Stock Programme: DIN 103 Available threads: Tr 10x3 bis 70x10 Lead Screw - Standard lengths: 1000 - 2000 ...
Lead screws rolled finish right hand / left hand Lead screws whirled finish right hand / left hand Lead screws stainless steel, rolled ...
A Polyamide type Resin with good sliding properties is employed in the standard MRH Nut material. And it can be used without oiling, because lubricating agent is incorporated in the material. Better sliding properties can be obtained ...
... . Maximum load is 4,200 pounds, and working load is 250 pounds for very long life. All-threads are standard screw threads, and are not ACME trapezoidal threads. All ...
