Internal diameter: 4 mm - 16 mm
External diameter: 8 mm - 30 mm
Thickness: 1 mm - 5 mm
Washers / Levelling disks GN 6343 are used mainly in mechanical engineering and jigmaking if shimming is required for levelling. Specification Stainless SteelNI AISI 304 turned, blank
Internal diameter: 8 mm - 12 mm
External diameter: 32 mm
Thickness: 14 mm
Used in connection with clamping screws, e.g. star knob screws, washer rings with axial ball bearing GN 6344 have the following advantages: - as much as twice the clamping force through lower surface friction - fixed ...
Internal diameter: 6.4 mm - 56 mm
External diameter: 12 mm - 92 mm
Thickness: 2.3 mm - 22 mm
Stainless Steel-Spherical washers DIN 6319 are used for clamping on non-parallel surfaces. When utilizing Stainless Steel-Hexagon nuts with spherical ...
Internal diameter: 7.1 mm - 35 mm
External diameter: 12 mm - 56 mm
Thickness: 2.8 mm - 12 mm
... DIN 6319-C-NI: convex washer, AISI 303 stainless steel. - DIN 6319-C-A4: convex washer, AISI 316 stainless steel. - DIN 6319-D-NI: ...
Internal diameter: 4.3 mm - 31.02 mm
External diameter: 8.6 mm - 56 mm
Thickness: 2 mm - 6.3 mm
... LOCK® product line involves lock washers, screws and nuts RIPP LOCK® lock washer RIPP LOCK® screw lock is provided with radial ribs and replaces such locking elements as spring washers ...
Internal diameter: 3.2 mm - 19 mm
External diameter: 7.3 mm - 37.6 mm
Thickness: 0.6 mm - 1.75 mm
... equipped with retaining rings and locking washers as well as bayonet clips. Another retainer type is for bolts and shafts with no grooves that come with double clips that are easily removed, and spring washers ...
Internal diameter: 6.6 mm - 33 mm
External diameter: 25 mm - 80 mm
Thickness: 27 mm - 79 mm
... Standard version trivalent blue passivated. Stainless steel version bright.Note:The spherical washer levelling set is used to mount and align motors, aggregates, drive units and production ...
... LOCK® guarantees lasting retention of preload force in the threaded connection, even under high dynamic stress. RIPP LOCK® washers, screws and nuts are mechanical locking elements which are proven to prevent fasteners ...
... threaded connections and effectively prevents spontaneous loosening, even under strong vibrations. Nord-Lock wedge-locking washers are mechanical machine elements. They secure threaded connections under vibration by ...
Internal diameter: 2.3 mm - 8.2 mm
External diameter: 4.5 mm - 14 mm
Thickness: 0.3 mm - 0.8 mm
... Skiffy Article Series344 are high performance locking washers designed to provide a secure lock for locking screws, bolts and nuts. The units are manufactured from mild or stainless steel ...
Internal diameter: 3.1 mm - 8.1 mm
External diameter: 5.6 mm - 12.7 mm
Thickness: 1 mm - 2 mm
... showcases a variety of spring washers that were made in accordance to DIN 7980 standards. All the 10 available models from this top-of-the-line series are either made from mild steel or stainless ...
Internal diameter: 2.2 mm - 6.4 mm
External diameter: 7 mm - 18 mm
Thickness: 0.8 mm - 1.6 mm
The 347 ARTICLE SERIES Large flat washer DIN 9021 is designed to enable more efficient distribution of clamping forces. The 347 is made with either mild steel or stainless steel, ...
Internal diameter: 2.1 mm - 2.5 mm
External diameter: 4.4 mm - 131 mm
Thickness: 0.7 mm - 15.1 mm
DIN 128 single coil spring lock washers. Metric DIN 128 Spring Lock Washers are specialty spring lock washers – Both are split metal rings that are bent into a curved ...
... 137 spring washers. DIN 137 TECKENTRUP lock washers. DIN137 lock rings SCHNORR lock washers S. Metric DIN137 Spring Lock Washers are specialty spring lock washers ...
Internal diameter: 16 mm - 52 mm
External diameter: 4.5 mm - 6.6 mm
Thickness: 3 mm - 6 mm
The EH 22270 Series of Washer is manufactured by Halder, and is designed with a material of stainless steel 1.4305 design. Moreover, this product is available in free cutting steel, ...
Internal diameter: 8 mm - 13 mm
External diameter: 40 mm
Thickness: 3 mm
PACKAGING:100 pcs/box MATERIAL:Steel, minimum hardness 130 HB galvanised as per DIN EN ISO 4042, stainless steel A4, further dimensions and finishes on request All of the dimensions ...
Internal diameter: 3 mm - 60 mm
External diameter: 6 mm - 80 mm
Thickness: 0.8 mm - 10 mm
DIN 1440 Similiar to ISO 8738 Plain washers for clevis pins (medium) A2 | A4
Lederer
Internal diameter: 8 mm - 23 mm
External diameter: 14 mm - 34 mm
Thickness: 1.6 mm - 4 mm
DIN 1441 Plain washers for clevis pins (coarse) A2 | A4
Lederer
Internal diameter: 5.5 mm - 22 mm
External diameter: 18 mm - 72 mm
Thickness: 2 mm - 6 mm
DIN 440 V Round washers for wood construction, type V (square hole) A2 | A4
Lederer
Internal diameter: 0.22, 0.41, 0.28, 0.34 in
External diameter: 1.25, 0.875, 1, 0.75 in
Thickness: 0.25, 0.188, 0.313 in

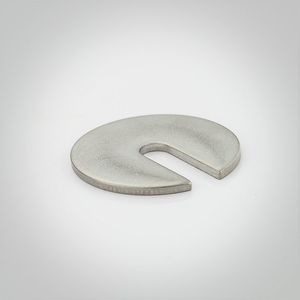

Equalizing "C" Washers Equalizing "C" Washers Material: 303 Stainless Available in FixturePro Design Software and PartSpec CD
Internal diameter: 0.2 in - 0.78 in
External diameter: 0.5 in - 1.625 in
Thickness: 0.188 in - 0.375 in
... edges are removed. Material: Low Carbon Steel or 303 Stainless Steel Finish: Black Oxide Heat Treat: Case Hardened
Internal diameter: 0.2 in - 0.78 in
External diameter: 0.5 in - 1.5 in
Thickness: 0.093 in - 0.15 in
Flat Washers Material: 1010 Cold Rolled; 303 stainless Finish: Black Oxide Heat Treat: Carbon Nitride to 60 Flat and parallel within .005" (0.13mm) Available in FixtureProTM Design Software and PartSpec ...
Internal diameter: 4.4 mm - 25.3 mm
External diameter: 7.6 mm - 39 mm
Thickness: 2.2 mm - 3.2 mm
ASSEMBLED SELF LOCKING WASHER - STAINLESS STEEL A4 INOX A4 Model : 416530
Internal diameter: 4.3 mm - 12 mm
External diameter: 16 mm - 52 mm
Thickness: 3 mm - 6 mm
Emile Maurin Eléments Standard Mécaniques
Internal diameter: 4 mm - 12 mm
External diameter: 10 mm - 40 mm
Thickness: 2.5 mm - 7.5 mm
Emile Maurin Eléments Standard Mécaniques
Internal diameter: 6.4 mm - 21 mm
External diameter: 13 mm - 40 mm
Thickness: 7 mm - 20.3 mm
Emile Maurin Eléments Standard Mécaniques
Internal diameter: 3 mm - 48 mm
External diameter: 7 mm
Thickness: 0.5 mm
(EQUIVALENT ISO 7089) FLAT WASHER STAINLESS STEEL A2
Internal diameter: 3 mm - 24 mm
External diameter: 9 mm
Thickness: 0.8 mm
(EQUIVALENT ISO 7093) FLAT WASHER STAINLESS STEEL A2
Internal diameter: 3.2 mm - 13 mm
External diameter: 7 mm - 24 mm
Thickness: 0.5 mm - 2.5 mm
... chambers, FPD production equipment, semiconductor devices, and electron microscopes SWAS-VF (flat washer with ventilation groove) SWAS-VF-PC (flat washer with ventilation groove, chemical polishing ...
NBK (Nabeya Bi-tech Kaisha)
Internal diameter: 3.2 mm - 18.8 mm
External diameter: 7 mm - 30 mm
Thickness: 2.2 mm - 5.3 mm
SWS is a stainless steel sealing washer with a built-in rubber seal. Washers prevent the leakage of gas and liquid from the bearing surface of the screw head. Test ...
NBK (Nabeya Bi-tech Kaisha)
Internal diameter: 6.05 mm - 12.2 mm
External diameter: 12 mm - 24 mm
Thickness: 3.9 mm - 7.5 mm
... eccentric lock washer™. Vibration resistant treatment effect can be achieved simply by using commercially available hexagon nuts. Hexagon nuts can be tightened by hand until tightening force applies, for simple mounting. Use ...
NBK (Nabeya Bi-tech Kaisha)
Stainless Steel Lacing Anchors Washers are used for thermal insulation products, like expansion joints and removable-reusable thermal insulation blankets. Stainless ...
External diameter: 10 mm - 14 mm
Thickness: 0.016 in
Stainless Steel Round Self-Locking Washers is used in conjunction with weld pins, insulation anchors and lacing anchors to fasten insulation in place. Product Part Number Diameter Length Thickness GA Inch Inch Round ...
Internal diameter: 3.4 mm - 79.1 mm
External diameter: 7 mm - 110 mm
... easy to install and remove (wedge lock washers are supplied as a pre-assembled pair) ◾Also suitable for high-tensile bolts of 8.8, 10.9 and 12.9 and their respective nuts ◾Available in steel or stainless ...
Internal diameter: 4.4 mm - 27.9 mm
External diameter: 9 mm - 39 mm
... RING LOCK WASHERS HEICO-LOCK® Ring Lock Washers provide high-quality, user-friendly bolt securing for the most demanding of applications and are ideal for repeated use. The ring locking system guarantees ...
External diameter: 13.5 mm - 30.7 mm
... Permanent securing and correct positioning of HEICO-LOCK® Wedge Lock Washers ◾Can be re-used several times ◾Cost savings through increased productivity ◾Available in steel or stainless ...
Internal diameter: 0.46 in - 0.47 in
External diameter: 0.65 in - 0.677 in
Thickness: 0.105 in - 0.12 in
ZāGO introduces its new line of panel bushing seals. Our seal washers are stainless steel, type 202 or 302, molded both front and back with silicone rubber, to fit toggle switches 0.469” ...
... EFFECT - MATERIAL DENSITY OF THE FINE WIRE MESH DEFINES THE REQUIRED SPRING FORCE - CUSTOMIZED SHAPES AVAILABLE - RANGE OF WIRES: MONEL (MO) TINNED COPPER CLAD STEEL ...
Internal diameter: 8.5 mm
Techn. Data / Items supplied • - stainless steel • - Diameter (d) : 8.5 mm • - weight = 0.002 kg/piece
Internal diameter: 3 mm - 70 mm
External diameter: 5 mm - 100 mm
Free Washers -Normal・For Countersunk Bolt・Counterbore-
Internal diameter: 4 mm - 20 mm
External diameter: 9 mm - 37 mm
Thickness: 3.2 mm - 16 mm
303 Stainless Steel Form 'A' Washers (WDS 876) (Available)£0.02 - £0.27 Each WDS 876 Type - Plain Washers MATERIAL 303 Stainless Steel (A2)
WDS Component Parts
Internal diameter: 3 mm - 55 mm
External diameter: 4.5 mm - 78 mm
Thickness: 1 mm
The high-grade thrust washers and the basic washers, manufactured by Boca Bearing, are designed using 52100 chrome steel. They are also available in 400 stainless chrome ...
