Vane flow meters

Volumetric flow rate: 0.2 l/min - 60 l/min
Process temperature: -20 °C - 80 °C
Process pressure: 16, 5 bar

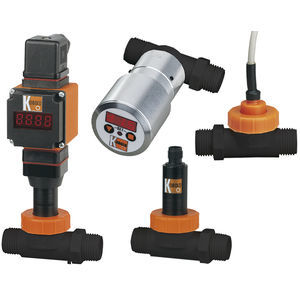

... the new KOBOLD vane is an embedded ring magnet; it is hermetically sealed from the flow medium. It transfers, in a non-contacting manner, the rotary motion of the vane to a Hall sensor ...

... liquid flow measurement performance, ease-of-use and value in the agricultural and turf markets since 1955. Its leading-edge propeller flow meters offer economical and versatile flow ...

Volumetric flow rate: 5.3 l/min - 524 l/min
Process temperature: -25 °C - 100 °C
Process pressure: 0 bar - 10 bar

VANE WHEEL MEASURING TUBE 18.2 MM UP TO 100 °C Vane wheel measuring tube with inside diameter 18.2 mm and integrated transducer UFA (optional). Probe material: stainless steel. Working temperature ...

Volumetric flow rate: 0 l/min - 25 l/min
Process temperature: 0 °C - 70 °C
Process pressure: 0 bar - 10 bar

... -F Series of In-Line Vane-Wheel Flow Meter, manufactured by Kobold Instrumentation, is mainly used in several areas of utilization such as in minimal viscosity fluids, non-conductive ...

Volumetric flow rate: 0.5 us gal/min - 20 us gal/min
Process pressure: 300 psi - 1,500 psi
Precision: 5 %

Variable Area Vane-Style Flowmeter for 0.5 - 20 GPM General Applications (SN) The SN series has the following characteristics and/or options: Local indication of flow rate. Mechanical ...

Precision: 0.1 %

LBYN Serials Scrape-board Flowmeter (Also called Rotary Vane Flowmeter) is a new type, particular-designed, precise process and assembling positive displacement flowmeter. It has only one rotator, circling ...

Volumetric flow rate: 0.5 l/min - 4 l/min
Process temperature: 0 °C - 80 °C
Process pressure: 0.55 MPa

SWV01series general-purpose food grade flow meter working principle is inner impeller rotated by the impact of fluid flow, the speed of impeller rotates to reflect flow ...

Volumetric flow rate: 25 l/min - 3,000 l/min
Process pressure: 10 bar

... positive displacement flow meters, positive isplacement vane flow meters, Characteristic: Excellent stepless fine-tuning device allows plus-minus ...

Volumetric flow rate: 0.1 l/min - 2.5 l/min
Process temperature: -20 °C - 100 °C
Process pressure: 0 bar - 25 bar

The In-line Vane-Wheel Flow Meter Vision Series 1000 & 2000 can be utilized for all ad medium volumes an can contain 0.1 up to 35 l/min.

Volumetric flow rate: 0 l/min - 70 l/min

... plate which is deflected proportionate to the flow in line. A mechanical pointer indicates the flow on an individually calibrated scale. Whether you are looking for an Oil Flow Monitor ...
