警告灯付警報器 QNES-SUS電子耐炎性ATEX
お気に入りに追加する
商品比較に追加する
特徴
- タイプ
- 警告灯付
- 技術
- 電子
- 保護レベル
- 防爆, IP66, ATEX, 耐炎性
- 設置
- 壁取り付け式
- 認証
- IECEx, KCs
- その他の特徴
- コンパクト, ステンレス製
- 騒音レベル
110 dB
詳細
Product Details
Model: QNES-SUS
Size:
Material:
Features
Specification
Caractéristiques / Spécifications techniques
Model: QNES-SUS
Size:
Material:
Features

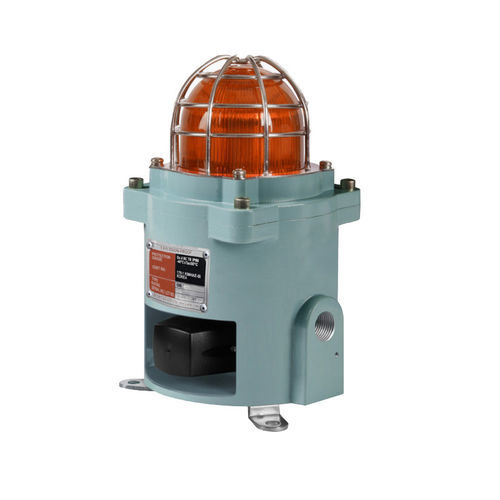

- Φ92mm Explosion Proof LED Signal/ Warning Light and Electric Sounder Combination
- Flame proof LED signal light that features steady/flashing, strobe, and simulated revolving light functions in one unit
- LED Steady/Flashing: Repeat operation of LED light on/off
- LED Strobe: Short LED steady/flashing. Creates a xenon flashing effect by providing maximum electric current
- LED Simulated Revolving Flashing: LED flashes steadily around the cylindrical LED filaments which makes a simulated revolving effect
Specification
- Explosion proof, multifunctional, and compact LED signal light and electric sounder combination designed for use in explosive gas environments with Ex d IIC rating
- Features excellent shock and vibration resistance, maintenance significantly reduced with long-lasting LED light source
- Superior durability with aluminum housing (QNES)
- STS housing provides superior durability and corrosion resistance (QNES-SUS)
- Fully enclosed structure with protection rating of IP66
- Housing standard color: Red, MUNSELL No. 7.5BG 7/2
- Cable entry: 1/2'' NPT
- Sound volume: Max. 110dB at 1m
- Flashing rate (LF type): 60-80 flashes/min.
- Strobe rate (LS type): 70-80 flashes/min.
- Simulated revolving rate (LR type): 120-140RPM
- Materials: Lens-Tempered glass, Inner lens-PC, Bracket-STS304, Protection cage-STS316, Housing-Al(QNES), STS(QNES-SUS)
- Certificates: ATEX, IECEx, KCs
- Protection rating: ATEX - II2G Ex db IIC T5/T6 Gb, IP66; IECEx - Ex db IIC T5/T6 Gb, IP66; KCs - Ex d IIC T6/T5, IP66
- Ambient operating temperature: -40°C ≤ Tamb ≤ +60°C (T5); -40°C ≤ Tamb ≤ +45°C (T6)
Caractéristiques / Spécifications techniques
- Modèle: QNES-SUS
- Type: Warning Light and Electric Sounder Combination
- Protection: Explosion proof, IP66
- Sound volume: Max. 110dB at 1m
- Flashing rate: 60-80 flashes/min (LF), 70-80 flashes/min (LS), 120-140RPM (LR)
- Materials: Tempered glass, PC, STS304, STS316, Aluminum, STS
- Certificates: ATEX, IECEx, KCs
- Operating temperature: -40°C to +60°C (T5), -40°C to +45°C (T6)
