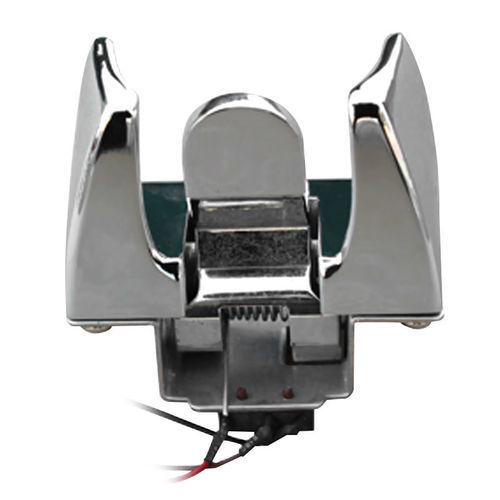

電話用フック H2

ステンレススチール製ステンレススチール製

Product Introduction
The hook adopts high-quality materials, the surface copper, nickel, chrome plated, can be a good anti-corrosion, anti external damage, to ensure its excellent performance. Our Hook is suitable for outdoor public telephones.
Standard
GB/15279-94 Automatic telephone technology conditions; YDN109-1998 (chapter 4) IC card telephone technical requirements and test methods.
Conditions of using

• Service Environment: -25~55℃
• Relative humidity: 10%~95%
• Atmospheric pressure: 96~108KPa

Main structure parts

• a. 600 # hanging for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
• b. Hang tongue for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
• c. Selects the high quality of universal switch, on resistance :0.1, cable length L: 150

Insulation resistance
In the switch between lead wires and metal shell, with TH2681A insulation resistance tester tests (DC 250 V, insulation resistance: 50M).
Withstand voltage
In the switch between lead wires and metal shell, with ET2670A hipot tester tests: AC1600V/50Hz/1min, Leakage current: 0.5Ma. No flashover or breakdown phenomenon.

Caractéristiques / spécifications techniques

• Modèle: Kntech H2
• Taille: (not specified)
• Matériau: Stainless steel
• Surface finish: copper, nickel, chrome plated for corrosion resistance
• Standards: GB/15279-94; YDN109-1998 (chapter 4)
• Service environment: -25~55℃
• Relative humidity: 10%~95%
• Atmospheric pressure: 96~108KPa
• Main parts: zinc-aluminium casting hook and hanger, chromium plated
• Switch: universal switch, on resistance: 0.1, cable length L: 150
• Insulation resistance: 50M (DC 250 V test)
• Withstand voltage: AC1600V/50Hz/1min, leakage current 0.5mA
