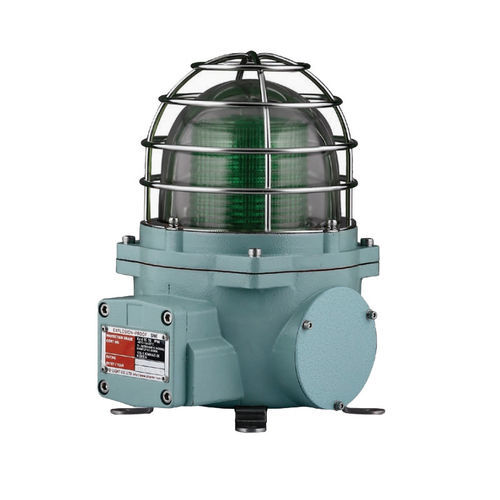

常時ビーコン SNELキセノンLED白熱
お気に入りに追加する
商品比較に追加する
特徴
- タイプ
- 常時
- 技術
- LED, キセノン, 白熱
- 電圧
- 24VDC, 12VDC, 110VAC, 220VAC
- 保護レベル
- IP66, 防爆, ATEX, IECEx
- その他の特徴
- コンパクト
詳細
Features
Common Specifications
Caractéristiques / spécifications techniques
- Light weight and compact explosion proof warning lights with a variety of light source selections from bulb, LED, and xenon lamp
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Housing standard color: MUNSELL No. 7.5BG 7/2
- Cable entry: 1/2'' NPT
- Materials: Lens-Tempered glass, Inner lens-PC, Housing-Al, Protection cage-STS 316L, Reflector for LED type-PC/ Reflector for bulb type-Heat resistant ABS
- Certificates: IECEx, ATEX, NEPSI, KCs, CCS, CCC(F), TIIS, CCC
- Protection rating:
- IECEX - Ex db IIC T6 Gb, Ex db op is IIC T6 Gb
- ATEX - II2G Ex db IIC T6 Gb, Ex db op is IIC T6 Gb
- KCs - Ex d IIC T6
- NEPSI, CCC - Ex d IIC T6 Gb
- TIIS - IIC T6 Gb (SNEL DC12/24V, AC110V only)
- Ambient operating temperature: -40°C ≤ Tamb ≤ +60°C
- -40°C ≤ Tamb ≤ +55°C (KCs)
- -20°C ≤ Tamb ≤ +55°C (TIIS, SNEL only)
Common Specifications
- Models: SNELR, SNEL, SNE-S, SNE
Caractéristiques / spécifications techniques
- Model: SNEL
- Protection rating: IP66
- Certificates: IECEx, ATEX, NEPSI, KCs, CCS, CCC(F), TIIS, CCC
- Material: Lens-Tempered glass, Inner lens-PC, Housing-Aluminum, Protection cage-STS 316L, Reflector for LED type-PC, Reflector for bulb type-Heat resistant ABS
- Operating temperature: -40°C to +60°C (varies by certification)
- Cable entry: 1/2'' NPT
- Housing color: MUNSELL No. 7.5BG 7/2
- Light source options: Bulb, LED, Xenon lamp
