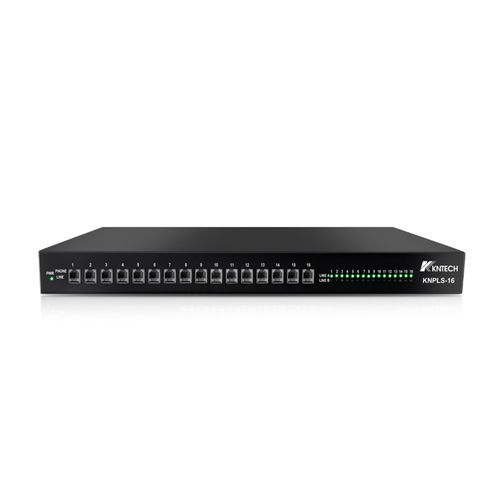

スマートイーサネットスイッチ KNPLS-16

16 ポートインラインbox型

Product Overview
The KNPLS-16 is a phone line switching unit that switches between Line A and Line B to ensure continuous telephone service when one line fails. It is an analogue phone line switch box designed to monitor and switch lines linked from two PABX systems (PABX-A as primary and PABX-B as hot standby). The unit ensures users are not affected by a primary line failure.

Key Features

• Automatic switching between PABX-A (primary) and PABX-B (backup) when a line failure is detected.
• Supports dual power and dual network for increased reliability.
• Monitors line status of the line connected to the end-device analogue telephone and reports connection failures.
• Integration with PABX and operator console GUI to notify operators of line or end-device failures.

Size Display
Detailed dimensional drawings and visual size display are provided on the product page.

Application
Designed for use where uninterrupted analogue telephone connectivity is required and where PABX redundancy (primary/backup) is implemented.

Caractéristiques / spécifications techniques

• Model: KNPLS-16
• Size: 437.4mm (L) x 252mm (W) x 44.2mm (H)
• Material: Cold-roll steel sheets
• Product type: Analogue A/B line switch box
• Function: Monitors two PABX lines and switches to backup if primary fails
• Power/Network: Supports dual power and dual network
• Monitoring: Reports end-device connection failures to PABX and operator console GUI
