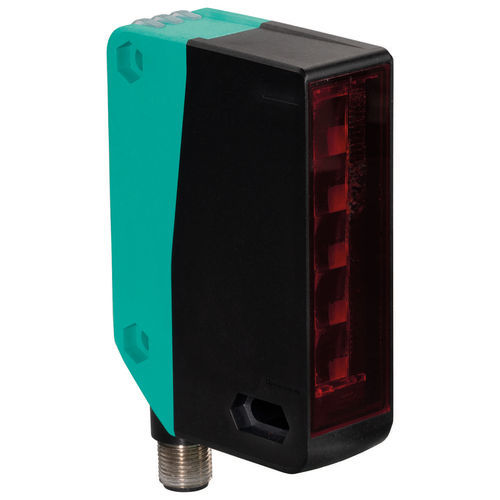

再帰反射光電センサ OGR4000-R305-2EP-IO-V1

長方形赤色照明LED

Key Benefits at a GlanceRetro-reflective area sensor with 5 light beams in a standard photoelectric sensor enclosureBright, easily visible transmitter beam for easy sensor alignmentReliable detection of all surfaces regardless of object textureReliable detection of very flat objects with irregular shapes, suitable for small partsConsistent detection of objects larger than 2 mm across the entire detection areaProduct DetailsRetro-reflective area sensor, red light, max detection range 4 m, light field height 60 mm, IO-Link interface, 2 push-pull outputs, M12 plugGeneral SpecificationsEffective detection rangeStandard mode: 0 ... 4 m High resolution: 0 ... 2 mReflector distance0.2 ... 4 m H85-2 reflectorThreshold detection range4 mDetection areaSee tableReference objectH85-2 reflectorLight sourceLEDLight typeModulated visible red lightLED risk group labelingExempt groupLight field height60 mmField width12 mmObject sizeMinimum 2 mm, 3 mm, 5 mm, 8 mm, 10 mm; position-independent detection within detection rangeNumber of beams5Divergence angle+/- 2°Ambient light limitEN 60947-5-2ResolutionSee tableFunctional Safety ParametersMTTFd674 yearsMission time (TM)20 yearsDiagnostic coverage (DC)0 %Indicators / Operating MeansOperation indicatorGreen LED:Steady on - Power onBlinking (4Hz) - Short circuitBlinking, short interruption (1 Hz) - IO-Link modeFunction indicatorYellow LED:On: Light path clearOff: Object detectedBlinking (8 Hz) - Correction finishedControl elementKey for teach-inControl element5-step rotary switch for operation mode selectionElectrical SpecificationsOperating voltageUB10 ... 30 V DC IO-Link mode: 18 ... 30 V DCRippleMax 10 %No-load supply currentI0< 35 mA at 24 V supply voltageProtection classIIIInterfaceInterface typeIO-LinkIO-Link revision1.1Device profileIdentification and diagnostics - I&D Smart Sensor - SSP 2.1Process dataInput 8 Bit - Switching signal 1 Bit - Stability alarm 1 Bit - Measured value 6 Bit Output 2 Bit - Sensor control function 1 Bit - Evaluation control function 1 BitVendor ID1 (0x0001)Device ID0x101001 (1052673)Transfer rateCOM2 (38.4 kBit/s)Minimum cycle time2.3 msSIO mode supportYesCompatible master port typeClass A, Class B (using 3-pin adapter or 3-wire cable)OutputSwitching methodSensor switching method is adjustable. Default settings:C/Q - Pin4: NPN NO / Dark-on, PNP NC / Light-on, IO-Link /Q - Pin2: NPN NC / Light-on, PNP NO / Dark-onSignal output2 push-pull (4 in 1) outputs, short-circuit protection, reverse polarity protection, overvoltage protectionSwitching voltageMax 30 V DCSwitching currentMax 100 mAVoltage dropUd≤ 1.5 V DCSwitching frequencyfStandard mode: 500 Hz, High resolution: 250 HzResponse timeStandard mode: 1 ms, High resolution: 2 msComplianceCommunication interfaceIEC 61131-9 / IO-Link V1.1.4Product standardEN 60947-5-2Approvals and CertificatesUL CertificationE87056, cULus certified, Class 2 power supply, Type rating 1CCC CertificationCCC certification/marking not required for products rated ≤ 36 VEnvironmental ConditionsAmbient temperature-40 ... 60 °C (-40 ... 140 °F) Minimum permissible ambient temperature during teach-in is -30 °C. Permissible temperature change after teach-in is 20 K.Storage temperature-40 ... 70 °C (-40 ... 158 °F)Mechanical SpecificationsProtection ratingIP67Connection4-pin, M12 x 1 connector, 90° rotatableMaterialHousingPC (polycarbonate)Optical surfacePlastic windowMass94 gDimensionsHeight89 mmWidth25.8 mmDepth59.5 mmProtection: IP67Operating voltage: 10 ... 30 V DC (IO-Link mode: 18 ... 30 V DC)Ambient temperature: -40 ... 60 °CDimensions: 89 x 25.8 x 59.5 mmMass: 94 gConnection: 4-pin, M12 x 1 connector, 90° rotatableMaterial: Housing - PC (polycarbonate), Optical surface - Plastic window
