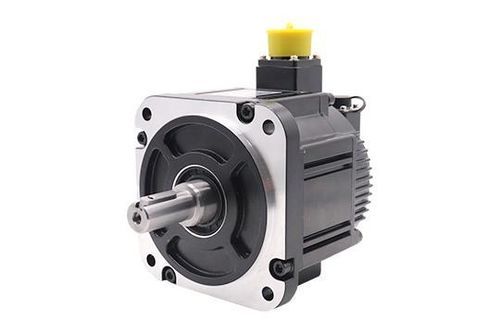

ACサーボモーター 110B

380VIP6510極

Features:17-bit/23-bit absolute photoelectric encoder, high-end and highly responsive.Speed: Excellent high-speed performance, typically reaches a rated speed of 3000 rpm, with a maximum achievable speed of 6000 rpm.Adaptability: Strong overload resistance, can withstand loads up to 3 times the rated torque, especially suitable for applications requiring instantaneous load fluctuations and high-speed starts.Stability: Smooth low-speed operation, no stepper motor-like stepping phenomenon at low speeds. Ideal for scenarios requiring high-speed response.Timeliness: Short dynamic response time for motor acceleration and deceleration, usually within tens of milliseconds.Comfort: Significantly reduced heat and noise.Product SpecificationsModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Length (mm)110B51200C3-Standard3803.1––140110B51200C3-Brake Z3803.1––165.5110B51800C3-Standard3804.0––163110B51800C3-Brake Z3804.0––188.5Motor SpecificationsParameter110B51200C3-17D/17N110B51200C3-17DZ/17NZ110B51800C3-17D/17N110B51800C3-17DZ/17NZRated Power (W)1200120018001800Rated Voltage (V)380380380380Rated Current (A)3.13.14.04.0Peak Current (A)9.39.31212Rated Torque (N·m)3.823.825.735.73Peak Torque (N·m)11.4611.4617.1917.19Rated Speed (rpm)3000300030003000Peak Speed (rpm)4500450040004000Back EMF (V/Krpm)78788888Torque Constant (N·m/A)1.231.231.431.43Winding Resistance (Ω)2.42.471.91.9D-axis Inductance (mH)11.811.89.59.5Q-axis Inductance (mH)15.015.013.013.0Electrical Time Constant (ms)9.89.810.010.0BrakeWithout brakeWith brakeWithout brakeWith brakeRotor Inertia (10⁻⁴kg·m²)5.26.47.89.0Weight (kg)4.45.45.96.9Length (mm)140165.5163188.5Number of Poles10101010Encoder Resolution17D (single-turn)17DZ (multi-turn)17N (single-turn)17NZ (multi-turn)Insulation ClassFFFFProtection GradeIP65IP65IP65IP65Outline DrawingKey Features / Technical SpecificationsSeries: 110B seriesVoltage: 380VEncoder: 17-bit/23-bit absolute valueNumber of pole pairs: 5Rated power: 1200W/1800WRated speed: 3000 rpmPeak speed: up to 6000 rpmProtection: IP65Insulation class: FBrake options: With/without brake
