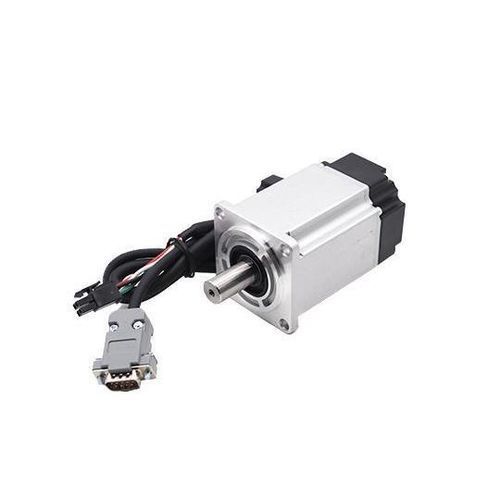

ACサーボモーター 60B series

220Vコーダー付きステンレス製

Features:17-bit/23-bit absolute photoelectric encoder, high-end and highly responsive.Speed: Excellent high-speed performance, typically reaches a rated speed of 3000 rpm, with a maximum achievable speed of 6000 rpm.Adaptability: Strong overload resistance, can withstand loads up to 3 times the rated torque, especially suitable for applications requiring instantaneous load fluctuations and high-speed starts.Stability: Smooth low-speed operation, no stepper-like movement at low speeds as seen in stepper motors. Ideal for scenarios requiring fast response.Timeliness: Short dynamic response time for motor acceleration and deceleration, usually within tens of milliseconds.Comfort: Significantly reduced heat and noise.Product Specifications:ModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Length (mm)60BST-C00630-2B12201.60.64No brake74.560BST-C00630-2B1-Z2201.60.64With brake9860BST-C01330-2B12202.61.27No brake9360BST-C01330-2B1-Z2202.61.27With brake116.5Motor Specifications:Motor Model60BST-CO0630-2B160BST-CO0630-2B1-Z60BST-CO1330-2B160BST-CO1330-2B1-ZRated Voltage (V)220220220220Rated Power (W)200200400400Rated Current (A)1.61.62.62.6Rated Torque (N·m)0.640.641.271.27Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10%Max Speed (rpm)3600±10%3600±10%3600±10%3600±10%Line Back EMF Constant (V/Krpm)25253131Winding Resistance (Ω)5.85.84.054.05Line Inductance (mH)9.89.86.56.5Moment of Inertia (10-3kg·m2)0.280.280.520.52Torque Constant (Nm/A)0.40.40.490.49Electrical Time Constant (ms)1.691.691.61.6BrakeNo brakeWith brakeNo brakeWith brakeLength (L mm)74.59893116.5Outline Drawing:Category: 5-pole AC servo motor and driver, absolute encoderTags: AC servo motor and driverTechnical Specifications:Encoder: 17-bit/23-bit absolute photoelectricRated Voltage: 220VRated Power: 200W/400WRated Current: 1.6A/2.6ARated Torque: 0.64Nm/1.27NmRated Speed: 3000rpmMax Speed: 3600rpmBrake: With/without brake options
