ベローズ吸盤 VMG134楕円形長方形円形
お気に入りに追加する
商品比較に追加する
特徴
- タイプ
- ベローズ, 平坦, 円形, 円形, 楕円形, 楕円型, 長方形
- 素材
- ゴム製, ネオプレン製, 二トリルゴム製, シリコン, EPDM, ポリウレタン被覆, アルマイト処理されたアルミ製, 溶融亜鉛メッキ鋼製, ポリッシュ銅製
- 硬さ
- ショアA60, ショアA70
- 用途
- ハンドリング用, グリップ用, セラミックタイル把持用, 板金用, 自動車産業用, 袋用, ガラス用, ソーラーパネル用, 林業用
- その他の特徴
- ゴム, シリコン, ポリウレタン被覆, アルミニウム, 滑り止め, フォーム, 支え付き
- 直径
最少: 4 mm
(0.16 in)最大: 45 mm
(1.77 in)- 使用温度
最少: -100 °C
(-148 °F)最大: 170 °C
(338 °F)
詳細
General features of the rubber compounds for Vacuum Cups
A table with all the features of the rubber compounds used for our vacuum cups: commercial name, international abbreviation, Vuototenica abbreviation, positive and negative features, colour, operation temperature, hardness, chemical resistance, food standards and examples of use.
Vacuum cups with supports (small diameters)
These traditional cup-shaped vacuum cups are suited for gripping and handling small objects with flat, slightly concave or convex surfaces. Diameters range from 4 to 9 mm. Normally available in standard compounds: natural para rubber (N), oil-resistant rubber (A) and silicone (S). Cold fitted with no adhesive onto a nickel-plated brass support shaped to perfectly fit the cup and equipped with a male threaded pin for fastening. Extremely easy to replace; cups in special compounds and supports in different materials can be provided upon request.
Vacuum cups with supports (10–45 mm)
Traditional cup-shaped vacuum cups for gripping objects with flat, concave or convex surfaces. Diameters 10 to 45 mm. Available in natural para rubber (N), oil-resistant rubber (A) and silicone (S). Cold fitted onto nickel-plated brass or anodised aluminium supports. Support shaped to fit the cup and equipped with male threaded pin. Cups in special compounds or supports in different materials available on request.
Vacuum cups (85 mm)
Widely used vacuum cups with diameter 85 mm, normally available in N, A and S compounds. Cold fitted onto an anodised aluminium support. Support equipped with male threaded pin and an M8 threaded hole for a grub screw to reduce suction volume. Easy replacement and availability of special compounds on request.
Star Vacuum cups (SV series)
The SV (STAR VACUUM) series is developed for handling flat and flexible objects (cardboard pads, thin metal sheets) without deformation. Internal rubber reinforcement sectors create a star-shaped bearing surface combining a soft lip for surface adaptation and a bearing surface for stability and rigidity. Can be fitted with male or female threaded metal fixing supports in anodised aluminium.
Maxigrip cups (round flat and bellows)
Designed for robot-automotive applications; available round/oval, flat or bellows-type, and equipped with vulcanised support. Flexible outside lip and inside design facilitating drainage of oil and water; high friction coefficient offering unique grip on oil-covered or wet surfaces. Standard BENZ compound: hardness 60–75°Sh, working temperature -40 to +170°C, stain-resistant, excellent abrasion, water and chlorine-oil resistance.
Adapters and accessories for Maxigrip
Standard accessories for MAXIGRIP assembly: galvanised steel adapters to convert female/male threads and gas/metric; internal hexagonal housing for easy screwing. AQ adapters with square flange and male/female threaded connections (anodised aluminium) for robotic gripping systems with built-in seal for perfect vacuum.
Suction cups for handling plastic films, flow packs and packaging
Series designed for handling thin, lightweight and delicate objects (plastic or paper bags). Thin lip adapts to shape changes; internal cleats distribute vacuum evenly preventing deformation or suction into the central hole. Para compound recommended for best adhesion and gentleness.
Round flat vacuum cups with supports
Designed for handling wooden or plastic panels, thin glass or marble sheets, fragile metal sheets, ceramic tiles. Low, strong tilted lip prevents swiping during grip. Internal cleats reduce air volume to be sucked and create a supporting surface to prevent deformation and slipping. Cold fitted onto anodised aluminium support and locked by ring nut.
Round flat vacuum cup with support (cans)
Designed for gripping soft drink cans and other flat smooth or slightly rough surfaces. Lip shape allows firm grip, reduces air volume for quicker grip/release. Cold fitted on anodised aluminium support with central threaded hole.
Round flat foam rubber vacuum cups with supports
Made with special GERANIUM compound (OF) foam rubber, density suited to grip uneven/very rough surfaces, self-adhesive side for quick fixing. NF neoprene foam recommended for lubricated surfaces. Working temperature OF: -40 to +80°C; NF: -20 to +80°C. Supports anodised aluminium; larger sizes with side threaded hole for vacuum connection.
Vacupredator vacuum cups (bags, packs, flexible containers)
For gripping bags, flow packs and flexible containers. Made of anodised aluminium with slotted plate and special foam rubber seal to adapt to creased flexible containers and prevent perimeter vacuum losses. Lifting force calculated at vacuum level -75 kPa with safety factor 3.

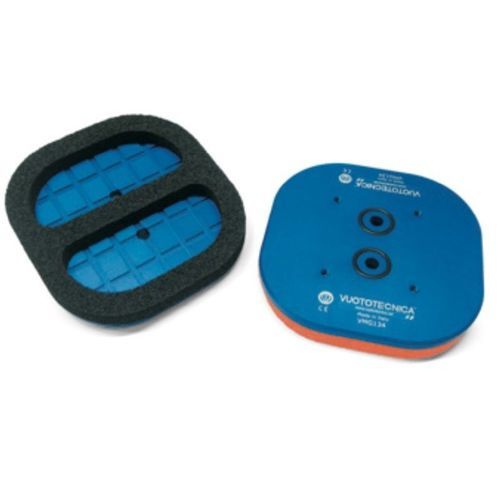

VMG134 suction cup for structured tiles
Designed for automatic sorting of textured tiles. High-density foam rubber maintains elasticity over cycles. Available compounds and temperature ranges: EPDM (SB) -40 to +130°C; Geranium foam (OF) -40 to +80°C; Neoprene (NF) -20 to +80°C. Self-adhesive side for fixing; support in anodised Anticorodal with four attachment holes and two vacuum connections sealed with NBR O-rings. Replaceable self-adhesive foam only for maintenance.
Vacuum cups with vulcanised support
Specially designed for gripping moulded or drawn sheet metal (automotive). Ground lip ensures immediate grip at small resting pressure and perfect vacuum seal. Made in BENZ compound resistant to chlorine in forming/drawing oils. Galvanised steel support vulcanised onto the cup. Available in special compounds on request.
Flat round and heavy-duty vulcanised cups
Flat round cups vulcanised onto steel supports for lifting heavy loads vertically and horizontally. Labyrinth graved face (same compound) for gripping thin fragile glass and marble without bending. Internal vertical lip versions for very rough surfaces (embossed metal, sawn marble, precast cement, etc.).
Concave, elliptical, rectangular and special shapes
Wide selection of concave cups for cylindrical objects, elliptical and rectangular cups for boxes and panels, circular rim cups for objects with central hole (grinding wheels, CDs), and many special shapes designed to solve specific gripping problems across sectors (glass, packaging, automotive, tiles, ceramics, pharmaceuticals, food). Supports in anodised aluminium or nickel-plated brass; many cups cold-fitted without adhesives.
Foam rubber sheets and strips
OF foam rubber sheets/strips (self-adhesive) to manufacture cups of every shape for rough surfaces. Working temperature -40 to +80°C. SB extra soft foam (EPDM) for OCTOPUS system: -40 to +130°C. NF neoprene foam (closed cell) for outdoor/lubricated surfaces: -40 to +100°C. Custom cuts available subject to minimum quantities.
Supports, adapters and accessories
Wide range of supports (nickel-plated brass, anodised aluminium), adapters (gas↔NPT, male↔female, size changes), threaded grub screws with calibrated holes to reduce suction section, filters and non-return valves. Many supports are compatible with multiple cup series and are designed for quick assembly and replacement.
Product documentation
Detailed PDF catalog sections are provided for each product family (see attached technical PDFs for tables with dimensions, product codes, compound options and accessory lists).
Caractéristiques / spécifications techniques
A table with all the features of the rubber compounds used for our vacuum cups: commercial name, international abbreviation, Vuototenica abbreviation, positive and negative features, colour, operation temperature, hardness, chemical resistance, food standards and examples of use.
Vacuum cups with supports (small diameters)
These traditional cup-shaped vacuum cups are suited for gripping and handling small objects with flat, slightly concave or convex surfaces. Diameters range from 4 to 9 mm. Normally available in standard compounds: natural para rubber (N), oil-resistant rubber (A) and silicone (S). Cold fitted with no adhesive onto a nickel-plated brass support shaped to perfectly fit the cup and equipped with a male threaded pin for fastening. Extremely easy to replace; cups in special compounds and supports in different materials can be provided upon request.
- Product codes examples: 010410 010510 010610 010707 010810 010907S ...
Vacuum cups with supports (10–45 mm)
Traditional cup-shaped vacuum cups for gripping objects with flat, concave or convex surfaces. Diameters 10 to 45 mm. Available in natural para rubber (N), oil-resistant rubber (A) and silicone (S). Cold fitted onto nickel-plated brass or anodised aluminium supports. Support shaped to fit the cup and equipped with male threaded pin. Cups in special compounds or supports in different materials available on request.
- Product codes examples: 011010 011210 011510 011810 012010 012210 012515 013015 ...
Vacuum cups (85 mm)
Widely used vacuum cups with diameter 85 mm, normally available in N, A and S compounds. Cold fitted onto an anodised aluminium support. Support equipped with male threaded pin and an M8 threaded hole for a grub screw to reduce suction volume. Easy replacement and availability of special compounds on request.
- Product codes examples: 018510 000828 0008136 000891 088510 ...
Star Vacuum cups (SV series)
The SV (STAR VACUUM) series is developed for handling flat and flexible objects (cardboard pads, thin metal sheets) without deformation. Internal rubber reinforcement sectors create a star-shaped bearing surface combining a soft lip for surface adaptation and a bearing surface for stability and rigidity. Can be fitted with male or female threaded metal fixing supports in anodised aluminium.
- Product codes examples: SV20SR SV25SR SV30SR SV40SR SV50SR SV20 SV25 SV30 SV40 SV50 SV20F SV25F ...
Maxigrip cups (round flat and bellows)
Designed for robot-automotive applications; available round/oval, flat or bellows-type, and equipped with vulcanised support. Flexible outside lip and inside design facilitating drainage of oil and water; high friction coefficient offering unique grip on oil-covered or wet surfaces. Standard BENZ compound: hardness 60–75°Sh, working temperature -40 to +170°C, stain-resistant, excellent abrasion, water and chlorine-oil resistance.
- Product codes examples: VRP40A VRP50A VRP60A VRP80A VRP100A VRP125A VRS40 VRS50 ...
Adapters and accessories for Maxigrip
Standard accessories for MAXIGRIP assembly: galvanised steel adapters to convert female/male threads and gas/metric; internal hexagonal housing for easy screwing. AQ adapters with square flange and male/female threaded connections (anodised aluminium) for robotic gripping systems with built-in seal for perfect vacuum.
- Product codes examples: 0008215 0008216 0008217 ... AQ321/8 AQ321/4 AQ323/8 AQ321/2 ...
Suction cups for handling plastic films, flow packs and packaging
Series designed for handling thin, lightweight and delicate objects (plastic or paper bags). Thin lip adapts to shape changes; internal cleats distribute vacuum evenly preventing deformation or suction into the central hole. Para compound recommended for best adhesion and gentleness.
- Product codes examples: 011409 0008239 0008240 081409 081409F ...
Round flat vacuum cups with supports
Designed for handling wooden or plastic panels, thin glass or marble sheets, fragile metal sheets, ceramic tiles. Low, strong tilted lip prevents swiping during grip. Internal cleats reduce air volume to be sucked and create a supporting surface to prevent deformation and slipping. Cold fitted onto anodised aluminium support and locked by ring nut.
- Product codes examples: 017624 019024 0111024 0115036 0008108 ...
Round flat vacuum cup with support (cans)
Designed for gripping soft drink cans and other flat smooth or slightly rough surfaces. Lip shape allows firm grip, reduces air volume for quicker grip/release. Cold fitted on anodised aluminium support with central threaded hole.
- Product codes examples: 015615 000883 085615
Round flat foam rubber vacuum cups with supports
Made with special GERANIUM compound (OF) foam rubber, density suited to grip uneven/very rough surfaces, self-adhesive side for quick fixing. NF neoprene foam recommended for lubricated surfaces. Working temperature OF: -40 to +80°C; NF: -20 to +80°C. Supports anodised aluminium; larger sizes with side threaded hole for vacuum connection.
- Product codes examples: 014215 016415 019215 0008147 ...
Vacupredator vacuum cups (bags, packs, flexible containers)
For gripping bags, flow packs and flexible containers. Made of anodised aluminium with slotted plate and special foam rubber seal to adapt to creased flexible containers and prevent perimeter vacuum losses. Lifting force calculated at vacuum level -75 kPa with safety factor 3.
- Product codes examples: VP12OF1015 VP22OF1515 VP0612OF1015 ...
VMG134 suction cup for structured tiles
Designed for automatic sorting of textured tiles. High-density foam rubber maintains elasticity over cycles. Available compounds and temperature ranges: EPDM (SB) -40 to +130°C; Geranium foam (OF) -40 to +80°C; Neoprene (NF) -20 to +80°C. Self-adhesive side for fixing; support in anodised Anticorodal with four attachment holes and two vacuum connections sealed with NBR O-rings. Replaceable self-adhesive foam only for maintenance.
- Product codes examples: 01134134 VMG134 0008479
Vacuum cups with vulcanised support
Specially designed for gripping moulded or drawn sheet metal (automotive). Ground lip ensures immediate grip at small resting pressure and perfect vacuum seal. Made in BENZ compound resistant to chlorine in forming/drawing oils. Galvanised steel support vulcanised onto the cup. Available in special compounds on request.
- Product codes examples: 085040 085040GRB 087540 087540GRB ...
Flat round and heavy-duty vulcanised cups
Flat round cups vulcanised onto steel supports for lifting heavy loads vertically and horizontally. Labyrinth graved face (same compound) for gripping thin fragile glass and marble without bending. Internal vertical lip versions for very rough surfaces (embossed metal, sawn marble, precast cement, etc.).
- Product codes examples: 0811015 0815015 0820010 0825010 0830010 ...
Concave, elliptical, rectangular and special shapes
Wide selection of concave cups for cylindrical objects, elliptical and rectangular cups for boxes and panels, circular rim cups for objects with central hole (grinding wheels, CDs), and many special shapes designed to solve specific gripping problems across sectors (glass, packaging, automotive, tiles, ceramics, pharmaceuticals, food). Supports in anodised aluminium or nickel-plated brass; many cups cold-fitted without adhesives.
- Examples of special product codes and series are listed across the range (see product code listings in technical PDFs).
Foam rubber sheets and strips
OF foam rubber sheets/strips (self-adhesive) to manufacture cups of every shape for rough surfaces. Working temperature -40 to +80°C. SB extra soft foam (EPDM) for OCTOPUS system: -40 to +130°C. NF neoprene foam (closed cell) for outdoor/lubricated surfaces: -40 to +100°C. Custom cuts available subject to minimum quantities.
Supports, adapters and accessories
Wide range of supports (nickel-plated brass, anodised aluminium), adapters (gas↔NPT, male↔female, size changes), threaded grub screws with calibrated holes to reduce suction section, filters and non-return valves. Many supports are compatible with multiple cup series and are designed for quick assembly and replacement.
Product documentation
Detailed PDF catalog sections are provided for each product family (see attached technical PDFs for tables with dimensions, product codes, compound options and accessory lists).
Caractéristiques / spécifications techniques
- Standard compounds: Para rubber (N), Oil-resistant rubber (A), Silicone (S).
- Special compounds: BENZ (high chlorine/oil resistance), Geranium foam (OF), Neoprene foam (NF), EPDM foam (SB), others listed in compound feature table.
- BENZ compound: hardness 60–75°Sh; working temperature -40 to +170°C; stain-resistant; high abrasion and oil resistance (including chlorine-containing oils).
- Foam types and temperature ranges: OF (GERANIUM) -40 to +80°C; NF (neoprene foam) -20 to +80°C or up to +100°C depending on grade; SB (EPDM extra soft) -40 to +130°C.
- Supports: nickel-plated brass, anodised aluminium, galvanised steel; some supports vulcanised to cups, some cold-fitted.
- Attachment: supports equipped with male/female threaded pins, central threaded holes, side vacuum connections, M8 grub screw holes or anti-rotation pins where applicable.
- Ranges: diameters from 4 mm up to large flat cups (e.g., 85 mm and larger), flat, bellows, double bellows, concave, elliptical, rectangular, circular rim and many special profiles.
- Applications: glass handling, automotive sheet handling, packaging (flow packs, films), marble/ceramic/granite handling, fragile items (eggs, semiconductor plates), textured tiles, bottles/cylindrical objects, cans.
- Accessories: adapters (gas↔metric, NPT), threaded reductions/grub screws to reduce suction section, filters and O-ring seals (NBR), quick couplers.
- Maintenance: many cups designed for easy replacement (replace cup only or self-adhesive foam only); vulcanised-support items may require specific spare parts.
