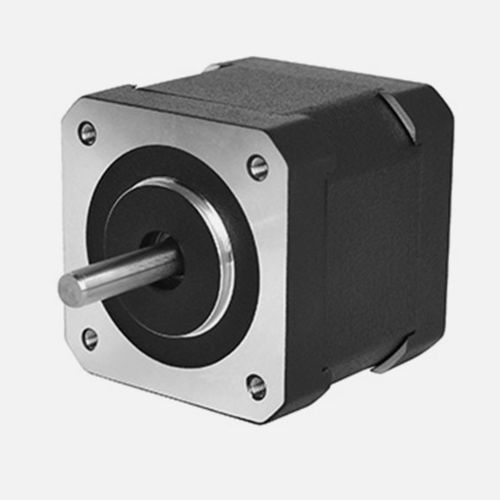

Hybrid stepper motor 42HSD seriesDC
Add to favorites
Compare this product
Characteristics
- Type
- hybrid stepper, DC
- Torque
Max.: 0.83 Nm
(0.612177 ft.lb)Min.: 0.24 Nm
(0.177015 ft.lb)
Description
GENERAL SPECIFICATION
Step Angle Accuracy：±5% ( full step, no load )
Resistance Accuracy：±10%
Inductance Accuracy：±20%
Temperature Rise：80℃ max ( rated current, 2 phase on )
Ambient Temperature：-20℃ ~ +50℃
Insulation Resistance：100MΩ min, 500VDC
Dielectric Strength：500VAC for one minute 5mA
Shaft Radial Play：0.02mm max ( 450g load )
Shaft Axial Play：0.08mm max ( 450g load )
Max. Radial Force：28N ( 20mm from the flange )
Max. Axial Force：10N
Rotation：CW
Insulation Class：B (130℃)
