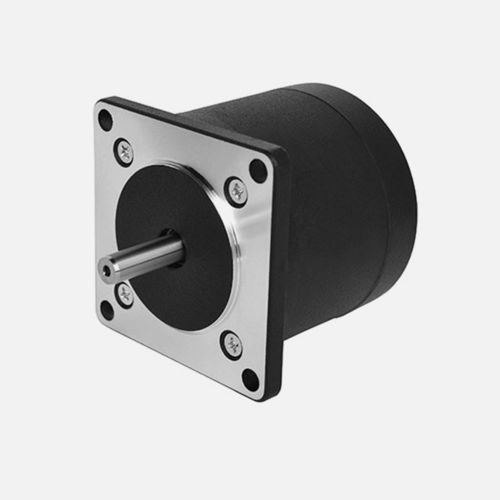

Hybrid stepper motor 57HYD seriesDC
Add to favorites
Compare this product
Characteristics
- Type
- hybrid stepper, DC
- Torque
0.42 Nm, 0.53 Nm, 0.6 Nm, 0.7 Nm, 0.9 Nm
(0.309776 ft.lb, 0.390908 ft.lb, 0.442537 ft.lb, 0.516294 ft.lb, 0.663806 ft.lb)
Description
GENERAL SPECIFICATION
Step Angle Accuracy：±5% ( full step, no load )
Resistance Accuracy：±10%
Inductance Accuracy：±20%
Temperature Rise：80℃ max ( rated current, 2 phase on )
Ambient Temperature：-20℃ ~ +50℃
Insulation Resistance：100MΩ min, 500VDC
Dielectric Strength：500VAC for one minute 5mA
Shaft Radial Play：0.02mm max ( 450g load )
Shaft Axial Play：0.08mm max ( 450g load )
Max. Radial Force：70N ( 20mm from the flange )
Max. Axial Force：30N
Rotation：CW
Insulation Class：B (130℃)
