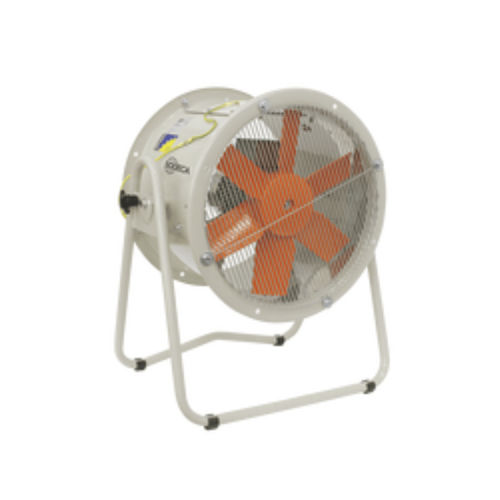

Tube extractor HTM/ATEX

- IP55 - Tubular ferrule made of steel sheet. - Polyamide 6 propeller reinforced glass fiber. - Protective grid against contacts according to the standard one-en ISO 12499, on both sides. - Hand retrofit power switch connection box. To avoid accidental startup (ES-ISO 12100). - Air-propeller direction. - The fan switch is coupled to a CESTAC P17 plug. For three-phase motor: 3P + T 16A. For single-phase motor: 2P + T 16A. - Engines with IE3 yield for powers equal to or greater than 0.75 kW, except single-phase, 2 speeds and 8 poles. - Class F motors with ball bearings and IP55 protection. Except monofásicos models of size 35 to size 56, with IP54 protection. - single phase 230 V 50 Hz and three-phase 230/400 V 50 Hz. - Operating temperature: -25 ºC +50 ºC. These mobile tubular helicoid fans are designed to provide efficient and flexible ventilation in various applications. Thanks to their robust tubular structure, they guarantee great strength and increased durability. The mobility of these fans makes it easy to move them as needed, providing a practical solution for ventilating different spaces. Their design ensures optimal performance while being tailored to demanding environments.
