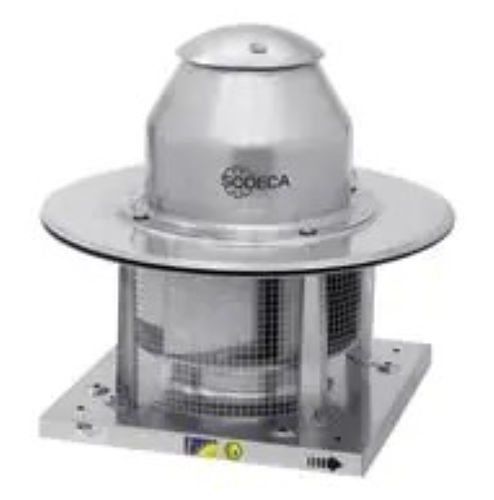

Tube extractor CHT / ATEX

- Reaction turbine. - Grid of protection against birds. - Baffleplate hat in aluminum sheet metal. - Maximum air temperature to be transported: -25 ºC +80 ºC. - Standard marking with explosion engine (ex dB): II 2g Ex H iB T4 GB. - Standard marking with increased safety motor (ex eB): II 2G ex H iB T3 GB. - Standard marking with dust motor (ex tb): II 2D Ex H IIIC T135 ºC dB. - CLASS F motors with ball bearings and ATEX anti-ddflagrant certificate, increased safety ex eb or virole protection for ex tb. - Three-phase 230/400 V 50 Hz (≤ 4 kW) and 400/690 V 50 Hz (> 4 kW). - Operating temperature: -20 ºC +40 ºC. These horizontal rejected centrifugal extraction turrets are designed to effectively evacuate air and gas gases, particularly in high-risk industrial environments. They are ATEX 2G or 2D certified, which means that they are suitable for use in potentially explosive areas, whether it is gas (2G) or dust (2D). Their horizontal rejection makes it possible to disperse the extract air laterally, thus avoiding to concentrate the emissions on the ground and helping to maintain a safe work environment.
