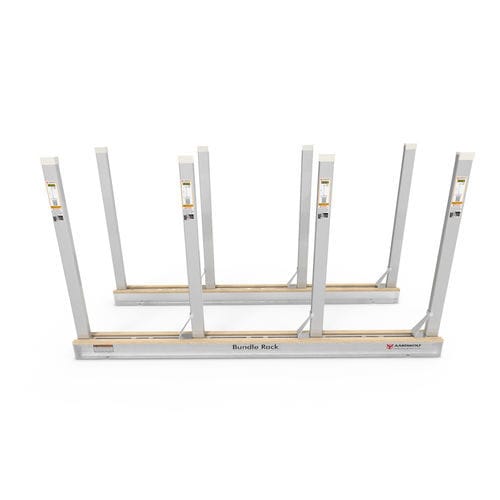

Steel storage rack ABR1200

General
Aardwolf provides the Bundle Rack Kit comprising two galvanized steel rails (3013 x 167 x 140 mm), rectangular galvanized steel tube posts and steel post bases. Rectangular posts can be positioned anywhere along the rail. Posts are manufactured from rectangular tube steel with a minimum yield strength of 345 MPa and a 5 mm wall thickness, suitable for vertical storage of slab bundles.

Features

• Folded steel bases and folded seven-hole sections reduce component weight.
• Maximum number of marble or granite slabs per bay at a 4° lean depends on slab thickness and dimensions.
• Kit supplied with eight steel tube posts (100 x 50 x 1200 mm) and six steel post bases for post heights 1200–1400 mm.
• Cost-effective storage layout to optimise floor space and handling operations.
• Aardwolf provides a calculator tool to determine slab storage capacity precisely (tool for reference only).

Technical specifications

• Model / Product name: Bundle Rack Kit
• Galvanized steel rails: 2 pcs — 3013 x 167 x 140 mm (118.6 x 6.6 x 5.5 in)
• Rack height: 160 mm (6.3 in)
• Rectangular hole size: 101 x 51 mm (4 x 2 in)
• Increment (spacing): 111 mm (4.4 in)
• Steel tube posts: 8 pcs — 100 x 50 x 1200 mm (4 x 2 x 47.2 in)
• Steel post bases: 6 pcs — for post heights 1200–1400 mm (47.2–55 in)
• Post wall thickness: 5 mm (0.2 in)
• Rectangular rubber caps: 8 pcs — 100 x 50 mm (4 x 2 in)
• Timber battens per rail: 50 x 20 mm (2 x 0.8 in)
• Post material minimum yield strength: 345 MPa
