Steel storage rack ASR1800

General

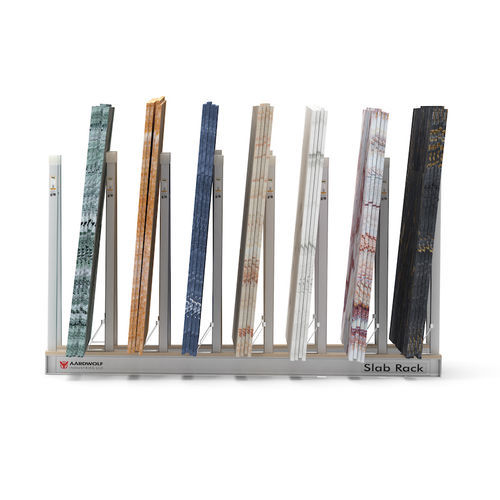

Aardwolf supplies the Slab Rack Kit ASR1800 for vertical storage of stone slab bundles. The kit includes two galvanized steel rails (nominal 3 m) combined with square-tube steel posts and steel post bases. Square posts can be positioned along the rails to configure bays as required. All posts are manufactured from square tube steel with a minimum yield strength of 345 MPa, suitable for controlled vertical storage with a standard 4° lean.

Features

• Adjustable post positions allow bay layout to be adapted to slab dimensions and thickness.
• Storage capacity per bay depends on slab size and thickness; Aardwolf provides a slab storage calculator for precise capacity estimates.
• Includes timber battens per rail to protect slab faces and distribute load.
• Supplied with steel post bases compatible with post heights 1600–1800 mm for stable anchoring.

Specifications

• Rails: 2 galvanized steel rails, 2979 x 164 x 165 mm (nom. 3 m)
• Square hole size: 52 x 52 mm (2" x 2") with 57 mm (2.2") increment
• Square tube posts: 16 pieces, 50 x 50 x 1800 mm
• Post wall thickness: 5 mm (0.2")
• Steel post bases: 14 units (for post heights 1600–1800 mm)
• Square rubber caps: 16 pieces, 52 x 52 mm
• Timber battens per rail: 50 x 25 mm

Technical specifications

• Product code: ASR1800
• Manufacturer / Brand: Aardwolf
• Materials: Galvanized steel rails; square tube steel posts; timber battens
• Minimum steel yield strength: 345 MPa
• Designed for vertical storage of slab bundles with capacity depending on slab thickness/dimensions and a 4° lean
