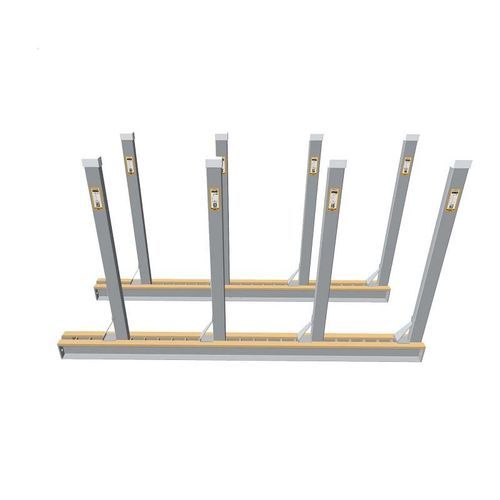

Steel storage rack ABR01

General
The Aardwolf Bundle Rack consists of two galvanized steel rails (sold as a pair). Rectangular galvanized steel tube posts and post bases are supplied separately. The rectangular post can be positioned anywhere along the rails. Posts are manufactured from 100 x 50 mm rectangular tube steel with a minimum yield strength of 345 MPa and a 5 mm wall thickness, suitable for vertical storage of slab bundles.

Features

• Safe storage capacity per bay at a 4° lean depends on slab thickness and dimensions.
• Aardwolf provides a slab-capacity calculator to determine storage precisely.
• Posts available in standard heights: 1200 mm, 1400 mm and 1600 mm.

Specifications
Please note that the price for this product includes only rails.

• Galvanized steel rails: 2 pieces; dimensions 2925 x 164 x 165 mm (115.1" x 6.4" x 6.5")
• Rack profile height: 165 mm (6.5")
• Rectangular holes per rail: 26; hole size 101.5 x 52 mm (4" x 2")
• Increment between holes: 111.5 mm (4.4")
• Rectangular tube post: 100 x 50 mm (4" x 2")
• Post wall thickness: 5 mm (0.2")
• Rectangular rubber cap: 100 x 50 mm (4" x 2")
• Timber battens per rail: 50 x 25 mm (2" x 1")
• Net weight per rail: 77.7 kg (171 lb)
• Gross weight per rail: 78 kg (172 lb)
• Packaging dimensions: L 2925 x W 165 x H 165 mm (L 115.1" x W 6.5" x H 6.5")
