Steel storage rack ABR1400

General

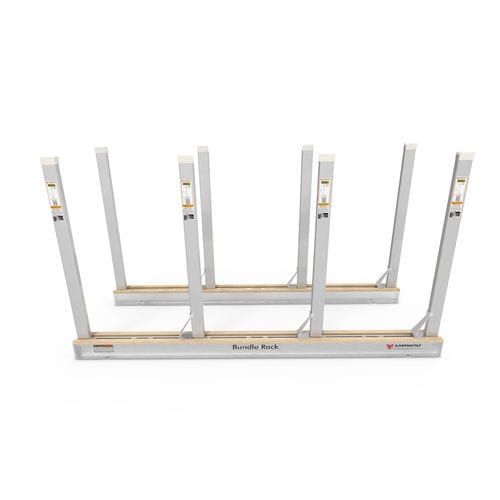

Aardwolf supplies the bundle rack kit designed for vertical storage of stone slab bundles. The kit includes two galvanized steel rails and rectangular galvanized steel tube posts that can be positioned along the rails. Posts are manufactured from rectangular tube steel with a minimum yield strength of 345 MPa and a 5 mm wall thickness to support safe storage of marble and granite slabs.

Features

• Folded steel bases and seven-hole folded steel rails reduce weight while maintaining structural stability.
• Maximum safe slab count per bay at a 4° lean depends on slab thickness and dimensions; capacity should be calculated per project.
• Standard kit combines two bundle rack rails with eight steel tube posts (height 1400 mm) and steel post bases suitable for post heights 1200–1400 mm.
• Solution designed to optimize storage space and cost-efficiency for stone processing and distribution operations.
• Aardwolf provides a slab storage calculator to determine precise capacity based on slab dimensions and thickness.

Specifications

• Galvanized steel rail: 2 pieces — 3013 x 167 x 140 mm (118.6 in x 6.6 in x 5.5 in).
• Rack height: 160 mm (6.3 in).
• Rectangular hole: 101 x 51 mm (4 in x 2 in).
• Increment: 111 mm (4.4 in).
• Steel tube posts: 8 pieces — 100 x 50 x 1400 mm (4 in x 2 in x 55 in).
• Steel post bases: 6 pieces — for posts height 1200–1400 mm (47.2 in–55 in).
• Posts wall thickness: 5 mm (0.2 in).
• Rectangular rubber caps: 8 pieces — 100 x 50 mm (4 in x 2 in).
• Timber battens per rail: 50 x 20 mm (2 in x 0.8 in).
