Steel storage rack ASR1400

General

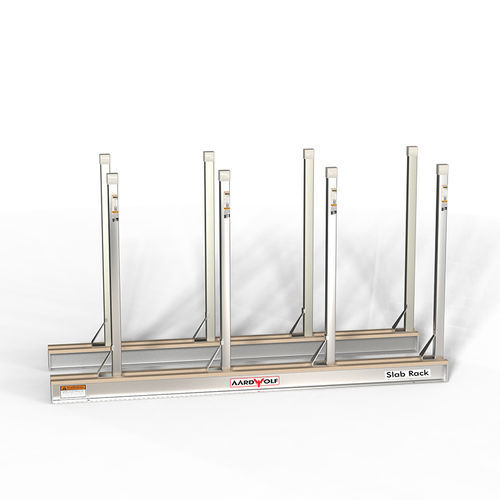

Aardwolf provides the Slab Rack Kit (model ASR1400). The kit contains a pair of galvanized steel rails (approx. 2979x164x165 mm), sixteen galvanized square tube posts and steel post bases for post heights 1200–1400 mm. Square posts can be positioned anywhere along the rail. All posts are manufactured from square tube steel with a minimum yield strength of 345 MPa, suitable for secure vertical storage of stone slab bundles.

Features

• The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on slab thickness and dimensions.
• Aardwolf provides a simple calculator so users can estimate slab storage capacity.
• The kit comprises a pair of rails combined with sixteen 50x50x1400 mm square tube posts and fourteen steel post bases for posts 1200–1400 mm.
• Designed to optimize storage footprint and reduce handling time and costs in industrial stone storage facilities.

Specifications
Galvanized steel rail | Qty: 2 | Metric: 2979x164x165 mm | Imperial: 117.3"x6.4"x6.5"
Square hole | Qty: — | Metric: 52x52 mm | Imperial: 2"x2"
Increment | Qty: — | Metric: 57 mm | Imperial: 2.2"
Square tube post | Qty: 16 | Metric: 50x50x1400 mm | Imperial: 2"x2"x55"
Steel post base | Qty: 14 | Metric: for posts height 1200-1400 mm | Imperial: 47.2"-55"
Posts wall thickness | Qty: — | Metric: 5 mm | Imperial: 0.2"
Square rubber cap | Qty: 16 | Metric: 52x52 mm | Imperial: 2"x2"
Timber battens per rail | Qty: — | Metric: 50x25 mm | Imperial: 2"x1"

Technical characteristics

• Product code: ASR1400
• Galvanized steel rails: pair, approx. 2979 x 164 x 165 mm
• Square tube posts: 16 pieces, 50 x 50 x 1400 mm; wall thickness 5 mm
• Square hole size: 52 x 52 mm; increment spacing: 57 mm
• Steel post bases: 14 units (for post heights 1200–1400 mm)
• Square rubber caps: 16 units
• Timber battens per rail: 50 x 25 mm
• Square tube steel minimum yield strength: 345 MPa
