Steel storage rack ASR1200

General

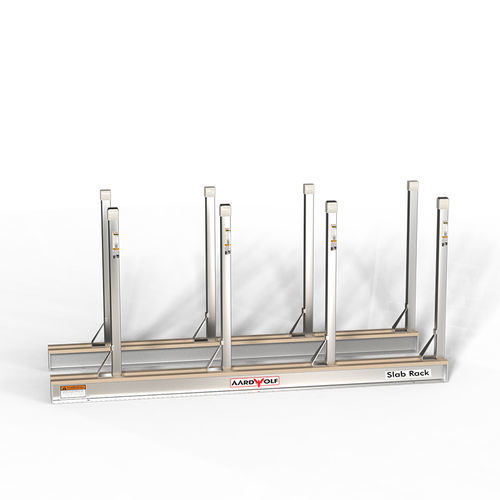

Aardwolf Slab Rack Kit ASR1200 includes a pair of galvanized steel rails (2979 x 164 x 165 mm / 117.3" x 6.4" x 6.5"), sixteen galvanized square tube steel posts 50 x 50 x 1200 mm (2" x 2" x 47.2") with square rubber caps, and fourteen steel post bases for post heights 1200–1400 mm (47.2"–55"). Square posts can be positioned anywhere along the rails. All posts are manufactured from square tube steel with a minimum yield strength of 345 MPa to secure vertical storage of slab bundles.

Features

• Storage capacity per bay at a 4° lean depends on slab thickness and dimensions; consult the Aardwolf capacity calculator.
• Timber battens (50 x 25 mm / 2" x 1") fitted per rail protect slab faces during vertical storage.
• Modular layout: posts are relocatable along the rails to adapt to slab sizes and storage patterns.
• Supplied as a complete kit (rails, posts, post bases, rubber caps, battens) for efficient slab storage management.

Specifications

• Galvanized steel rail — Qty: 2 — Metric: 2979 x 164 x 165 mm — Imperial: 117.3" x 6.4" x 6.5"
• Square hole size — Metric: 52 x 52 mm — Imperial: 2" x 2"
• Increment (adjustment step) — Metric: 57 mm — Imperial: 2.2"
• Square tube post — Qty: 16 — Metric: 50 x 50 x 1200 mm — Imperial: 2" x 2" x 47.2"
• Steel post base — Qty: 14 — For post heights 1200–1400 mm — Imperial: 47.2"–55"
• Post wall thickness — Metric: 5 mm — Imperial: 0.2"
• Square rubber cap — Qty: 16 — Metric: 52 x 52 mm — Imperial: 2" x 2"
• Timber battens per rail — Metric: 50 x 25 mm — Imperial: 2" x 1"

Technical characteristics

• Material (posts): square tube steel, minimum yield strength 345 MPa.
• Rails: galvanized steel, nominal length 2979 mm (approx. 3 m).
• Adjustable post positions via 52 x 52 mm square holes with 57 mm increments.
• Post wall thickness: 5 mm.
• Suitable for vertical storage of marble, granite and engineered stone slabs; safe capacity depends on slab dimensions and thickness.
