Steel storage rack ASR01

General description

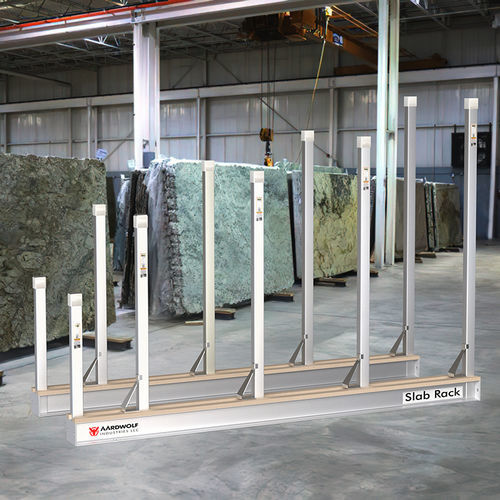

The Aardwolf Slab Rack comprises two 3 m galvanized steel rails with square fixing holes at 57 mm increments to accept square posts. Rails are fitted with timber battens to protect slab edges. Square steel posts (50 x 50 mm tube, 5 mm wall) can be positioned anywhere along the rails. Five standard post heights are available (800–1800 mm). Steel yield strength: 345 MPa.

Key features

• Adjustable post placement along 3 m rails to accommodate various slab thicknesses and sizes.
• Edge protection via timber battens to minimise chips and scratches on polished surfaces.
• High-strength galvanized construction for reliable vertical storage of stone slabs.
• Posts sold separately; compatible with Aardwolf post system and Aardwolf Slab Rack Storage Calculator.

Specifications
Galvanized steel rail — Qty: 2 — Metric: 2979 x 164 x 165 mm — Imperial: 117.3 x 6.4 x 6.5 in
Square hole — 52 x 52 mm
Hole increment — 57 mm
Post material — Square steel tubing 50 x 50 mm, wall 5 mm
Timber battens per rail — 50 x 25 mm
Net weight per rail — 67.7 kg
Gross weight per rail — 68 kg
Packaging dimensions — L 2980 x W 165 x H 165 mm

Why choose the Aardwolf Slab Rack?

• Optimise capacity using the Aardwolf Slab Rack Storage Calculator to select post type and quantity.
• Suitable for granite, marble, quartz and engineered stone — ideal for slab distributors and fabricators.
• Durable, rust-resistant galvanized finish for long-term use in industrial environments.

Notes

• Sold as a pair: each set includes two galvanized steel rails; posts are sold separately.
• Displayed price (when shown) typically includes the two rails only.
• Storage calculator assumes use with Aardwolf posts; compatibility with competitor posts not guaranteed.

Technical specifications

• Product type: Slab rack rails (pair)
• Rail length: 3 000 mm (approx.)
• Rail material: Galvanized steel
• Hole size: 52 x 52 mm
• Hole increment: 57 mm
• Post size: 50 x 50 x 5 mm
• Post height options: 800–1800 mm
• Timber battens: 50 x 25 mm per rail
• Yield strength: 345 MPa
• Net weight per rail: approx. 67.7 kg
• Packaging dimensions: L 2980 x W 165 x H 165 mm
