A-frame rack for joinery ASR1600

General

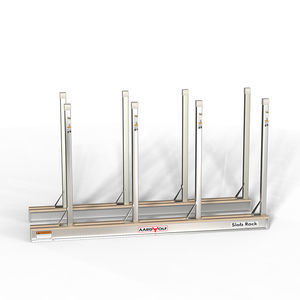

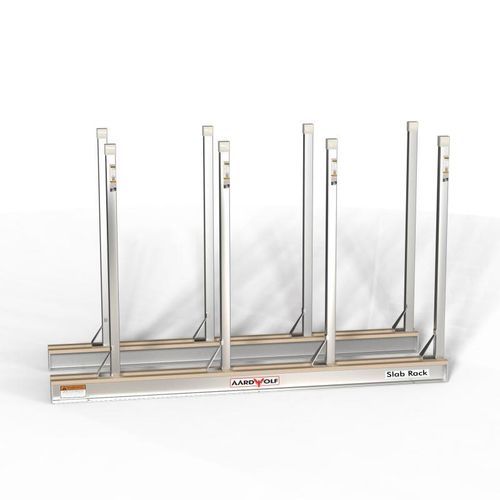

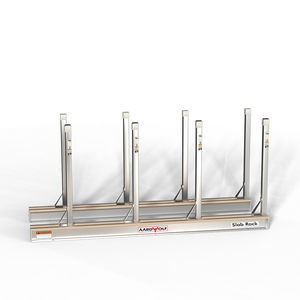

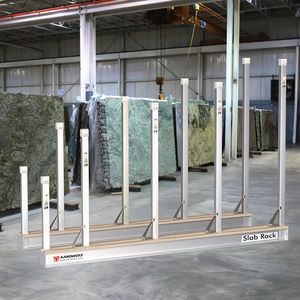

Aardwolf supplies the Slab Rack Kit consisting of two galvanized steel rails (approx. 3 m) with repositionable galvanized square tube posts and steel post bases. All posts are manufactured from square tube steel with a minimum yield strength of 345 MPa for safe vertical storage of slab bundles.

Features

• Adjustable square posts can be positioned anywhere along the rail to match slab widths and handling requirements.
• Maximum safe slab count per bay at a 4° lean depends on slab thickness and dimensions; use the Aardwolf storage calculator to determine capacity.
• Includes timber battens per rail to protect slab faces during storage and handling.
• Modular components (rails, posts, bases, caps) simplify installation, maintenance and replacement.

Specifications
Galvanized steel rail — Qty: 2 — Metric: 2979x164x165 mm — Imperial: 117.3" x 6.4" x 6.5"
Square hole — Qty: (n/a) — Metric: 52x52 mm — Imperial: 2" x 2"
Increment — Qty: (n/a) — Metric: 57 mm — Imperial: 2.2"
Square tube post — Qty: 16 — Metric: 50x50x1600 mm — Imperial: 2" x 2" x 63"
Steel post base — Qty: 14 — Metric: 1600-1800 mm — Imperial: 63" - 70.9"
Posts wall thickness — Qty: (n/a) — Metric: 5 mm — Imperial: 0.2"
Square rubber cap — Qty: 16 — Metric: 52x52 mm — Imperial: 2" x 2"
Timber battens per rail — Qty: (n/a) — Metric: 50x25 mm — Imperial: 2" x 1"

Technical characteristics

• Material: galvanized steel (rails, posts and bases).
• Post profile: square tube 50x50 mm; wall thickness 5 mm.
• Post height: 1600 mm; post bases suitable for 1600–1800 mm posts.
• Number of posts: 16; number of post bases: 14.
• Square rubber caps: 16 units (52x52 mm).
• Timber battens: 50x25 mm per rail to protect slab surfaces.
• Minimum material yield strength (posts): 345 MPa.
