Screw compressor Formula M
gearairelectric

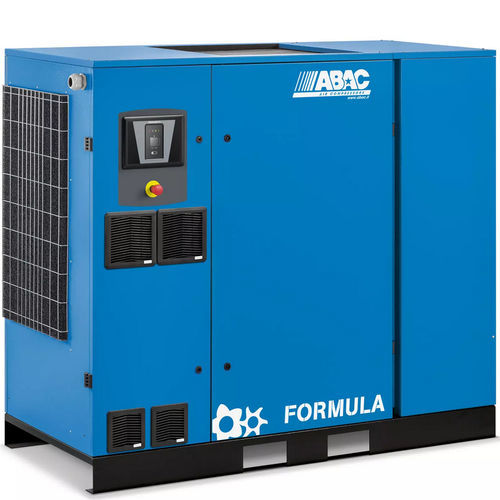

Screw compressor - Formula M - ABAC - gear / air / electric
Screw compressor - Formula M - ABAC - gear / air / electric
Screw compressor - Formula M - ABAC - gear / air / electric - image - 2
Screw compressor - Formula M - ABAC - gear / air / electric - image - 3
Screw compressor - Formula M - ABAC - gear / air / electric - image - 4
Add to favorites
Compare this product

Characteristics

Technology
screw, gear
Type
air
Power source
electric
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Applications
service, motor, parts, key, panel
Voltage
400 V
Other characteristics
compact, tank-mounted
Pressure

7.5 bar, 8.5 bar, 10 bar, 13 bar
(108.78 psi, 123.28 psi, 145.04 psi, 188.55 psi)

Flow

Max.: 7,560 m³/h
(266,978.88 ft³/h)

Min.: 1,788 m³/h
(63,142.62 ft³/h)

Power

Max.: 45 kW
(61.18 hp)

Min.: 30 kW
(40.79 hp)

Length

1,330 mm
(52.36 in)

Width

830 mm
(32.68 in)

Height

1,555 mm
(61.22 in)

Weight

589 kg, 605 kg, 610 kg, 629 kg, 656 kg
(1,298.5 lb, 1,333.8 lb, 1,344.8 lb, 1,386.7 lb, 1,446.2 lb)

Noise level

72 dB, 73 dB, 75 dB

Description

Compact, connected and reliable: unleash high performance for your business. Taking advantage everyday, with Formula M range performance Easy to use, reliable, efficient: Formula M screw compressor is simply about that. Evolved to tackle the toughest industrial jobs, this air compressor results in cost savings and high performances. Reliable quality (Gear Driven vs Belt) The gear driven equipments feature highly reliable gear transmissions over belt systems, ensuring a quiet and trouble-free operation that stands the test of time. Formula MI 55-75: Direct Driven - Permanent Magnet Motor (iPM) for Major Energy Savings* iPM is ideal solution for highly efficient operation during fluctuating air demand. While traditional compressors only have one speed (100% on), iPM compressors adjust their motor speed to follow the fluctuating air demand that most production environments have. As a result, the new Formula MI delivers energy savings of up to 35%. ABAC famous user friendliness Thanks to an intuitive control panel, you have a clear overview of all key parameters and system menus – so in a few touches you can easily drive your Formula M. Besides, all the maintenance components like air, oil filters and belts are ideally positioned to enable an ultimately fast and secure maintenance. Dedicated service kits support reliable and efficient operation and include all original parts in one single package.

Catalogs
