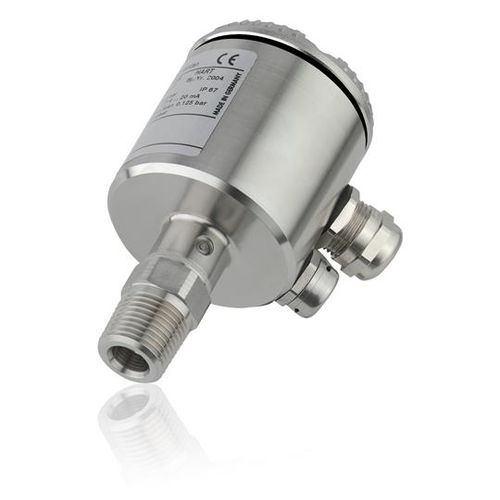

Absolute pressure transmitter 261AS

membranedigitalflange

The compact transmitter class for absolute pressure within the 2600T series. The reliable sensing system with the very latest digital technologies, provides a large turndown ratio of up to 20:1. The compact, robust transmitter housing is made of 316 stainless steel as a standard. Due to its high corrosion resistance it can be used in a wide variety of process and ambient conditions without any problems. The user friendly display allows simple and intuitive local transmitter operation. Full device support, including diagnostic / maintenance information is guaranteed via the Device Type Manager software used in either a stand alone or system engineering tool. The tranmsitter provides local zero and span adjustments even without display Base accuracy: ± 0.1 % Output signal: 4 to 20 mA, HART Conforms to SIL2 acc. to IEC 61508 / IEC 61511 Full compliance with PED Category III ABB’s freedom of choice offers the right driver for the major fieldbus protocols suitable for ABB devices. The version matrix document shows for each protocol the software revision that’s compatible to the hardware and firmware revision of the device. Read first – Software/hardware revisions: Version matrix Software and documentation: HART – Software: DTM400, EDD – Driver description: Supplementary information Stand-alone tool: ABB offers software tools that use the listed drivers above for your device configuration and monitoring requirements.
