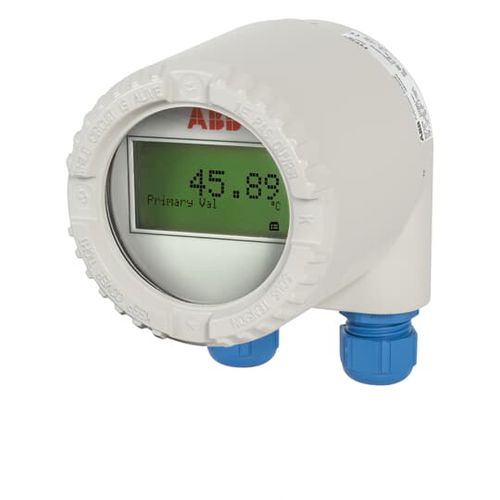

Probe head-mounted temperature transmitter TTF200

thermocoupleRTDHART

The TTF200 HART temperature transmitter completes the TTx200 / TTx300 product family in proven two-wire technology. The field-mount temperature transmitter TTF200 is provided for all HART standard applications in temperature measurement with one sensor. The transmitter supports the same functionality as the TTF300, but without sensor redundancy and sensor drift monitoring. It can be configured with ABB-tools such as DAT200 (Asset Vision Basic) via DTM, Handheld via EDD, FIM (Field Information Manager) or any standard tool using FDI-/FDT-Technology. Data Universal sensor input – RTD, thermocouple, Ω, mV Functional safety SIL 2 / SIL 3 in accordance with IEC 61508 Output signal – 4 to 20 mA, HART Accuracy 0.1 %, long-term stability 0.05 % per year Wire break / corrosion monitoring in accordance with NE 89 Diagnostic information in accordance with NE 107 IP 66 / IP 67, NEMA 4X aluminum or stainless steel field-mount housing Large, user-friendly LCD indicator Type BS Approvals for explosion protection – ATEX, IECEx, zone 0
