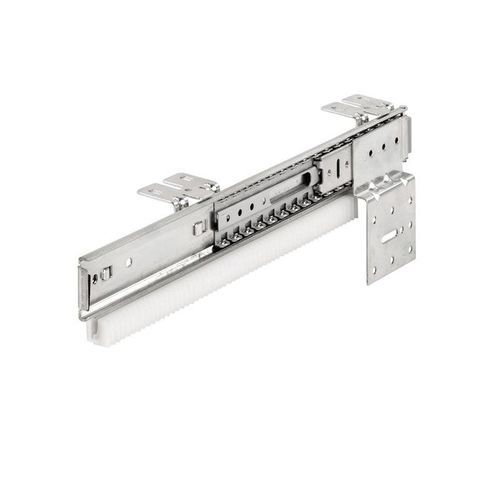

Full-extension slide DZ1316 series

rollerpocket doorsteel

Pocket Door Sliding System DZ1316 The DZ1316 is an anti-racking mechanism for use with the DZ1319 pocket door slide, which must be purchased separately. Providing synchronized movement for doors with a maximum door weight . Not suitable for flat mounted applications. DESCRIPTION Pocket door hardware suitable for wide doors. The DZ1316 anti-racking mechanism is designed for use with the 1319 pocket door track and, when used with a profile rod, can support a maximum door weight , door width of 1200mm and door height of up to 2300mm. The wood thickness of your door should be between 16-20mm. Hinges, base plates and follower strip are not supplied with this product and must be purchased separately. Two to five hinges are required for doors of up to 2300mm high, for further recommendations see the hinge recommendation table on the product datasheet. DZ1316 kit comprises: 2 x toothed rails, galvanised steel/white plastic 2 x pinions with screw mounts, white plastic Mounting screws, M4 x 25mm 1 rod support When used with our DZ1319 pocket door track, the DZ1316 anti-racking mechanism must be purchased with a profile rod. The profile rod you choose will depend on your door measurements: DZ61040 profile rod kit comprises: 1 x profiled rod (2000mm), drawn steel, polished nickel-plated. Maximum door height 1800mm DZ61050 profile rod kit comprises: 1 x profiled rod (2500mm), drawn steel, polished nickel-plated. Maximum door height 2300mm. Maximum horizontal door width 1200mm SPECIFICATIONS Wood thickness should be 16-20mm It is essential to order DZ1316 as an additional part number to DZ1319
