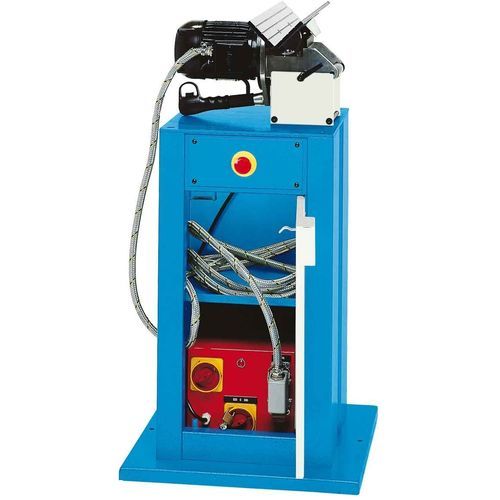

Electric beveling machine ART.19

stationarysheetautomatic

Power supply Input 400 | 50 | 3 Output 48 | 50 | 3 Volt|Hz|Phase Acoustic emission 68 dB Overall dimension (Width x Depth x Height) 600 x 600 x H. 1110 mm Weight standard machine 110 kg Chamfer - bevel unit Bevel dimension (diagonal) 0 ÷ 6 | 0 ÷ 20 mm Support table dimension 80 x 500 | 80 x 250 mm Milling cutter diameter ø 80 mm Quantity of widia insert milling cutter 20 No. Widia insert type/code SPUN 12 03 08 ISO Peripheral speed 12 m/sec Standard Equipments Machine respect CE stamp of compliance - Machine with CE conformity mark made respecting the requirements of the most recent directives concerning it. - Machine complete with instruction manual complete with CE conformity certificate, test sheet and exploded view with relative spare parts list. - Machine equipped with a set of service keys suitable for the adjustment and maintenance of the machine. Technical general information Hardened, case hardened, ground and grooved guides for prolonged resistance to friction. Double guides to use the bench and portable machine. Axial displacement of the guides for full use of the insert surface. Tilting beveling guide with graduated indicator for bevels from 15 ° to 45 °. Bevel size adjustment handwheel. Cutter body complete with 20 widia inserts.
